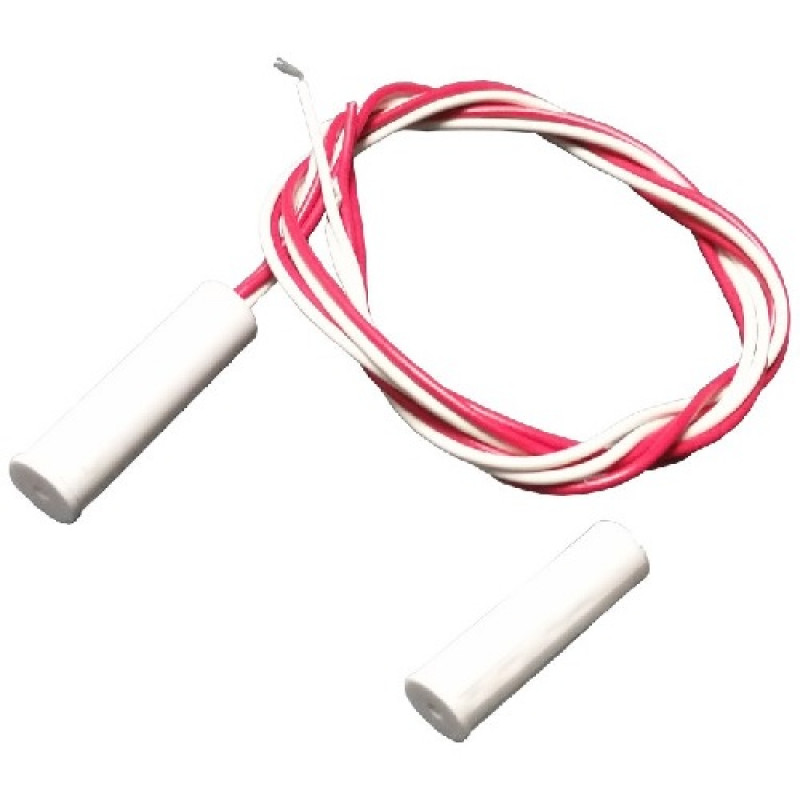

Knight Plastics, C91, 4 Wire Single Reed Normally Open Pencil Flush Contact (G2)
- Brand:Knight Plastics
- Product Code:C91
- Availability:Please Call or Email to Checkout
Knight Plastics, C91, 4 Wire Single Reed Normally Open Pencil Flush Contact (Grade 2)
This contact is Normally Open (N/O) – The circuit through the contact is complete until the magnet is moved close by. With the magnet in close proximity, the circuit through the contact is broken.
Of the 4 available wires, two carry the signal from the switch while the remaining two function as a tamper loop.
The C series of contacts are designed to have a small form factor and easy push fit installation. They are ideal for use on windows or anywhere a standard 20mm recess will not work.
Specifications:
| Environmental Class |
III – Outdoor sheltered |
|---|---|
| Fly Lead |
30cm – 4 wire |
| Tamper |
Wire loop |
| Operating Gap |
~15mm |
| Dimensions |
8.5mm diameter, 29mm deep
|
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
