Knight Plastics, A90, 6 Screw Double Reed Flush Contact +S/Steel Plate (G1)
- Brand:Knight Plastics
- Product Code:A90
- Availability:Please Call or Email Us to Check Availability
Knight Plastics, A90, 6 Screw Double Reed Flush Contact +S/Steel Plate (Grade 1)

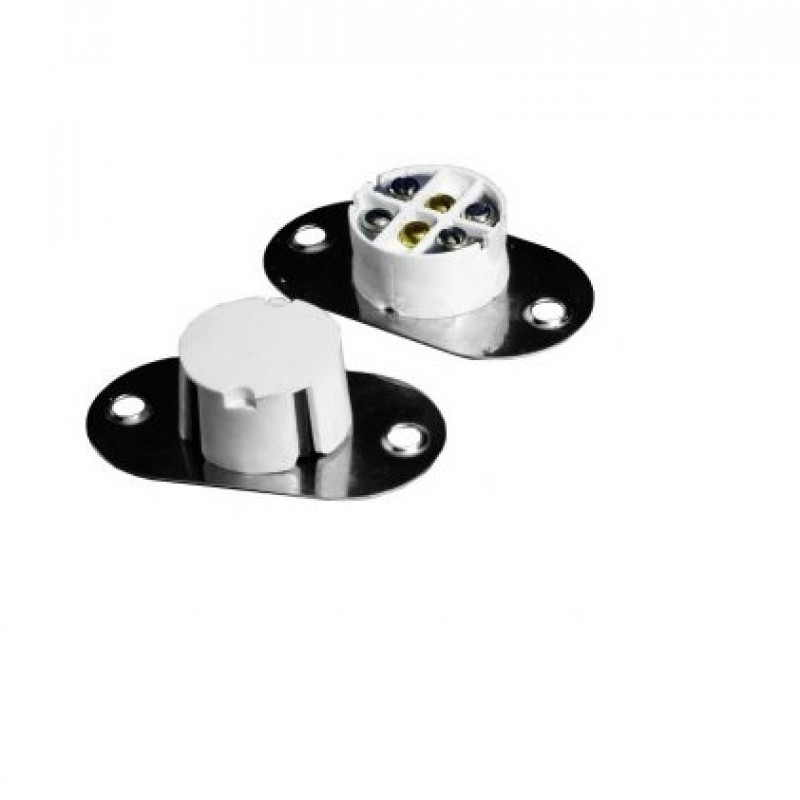

A90 is a double reed (DPST) flush contact.
Note that this contact has a 25mm diameter barrel – larger than the standard 20mm.
Of the 6 available wiring points – 4 nickel screws provide wiring to the two reed switches, while 2 additional brass terminals are provided as unlinked spares.
This contact has a large, oval stainless steel fitting plate and comes complete with fixings.
Specifications:
- 6-Terminal Flush Double Reed Contact with S/Steel Plate
- Colour: White/Silver
- Environmental Class 2
- Operating Gap: 25-30mm (approx)
- Dimensions: 25mm dia
- Terminals : 6- Screw
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
