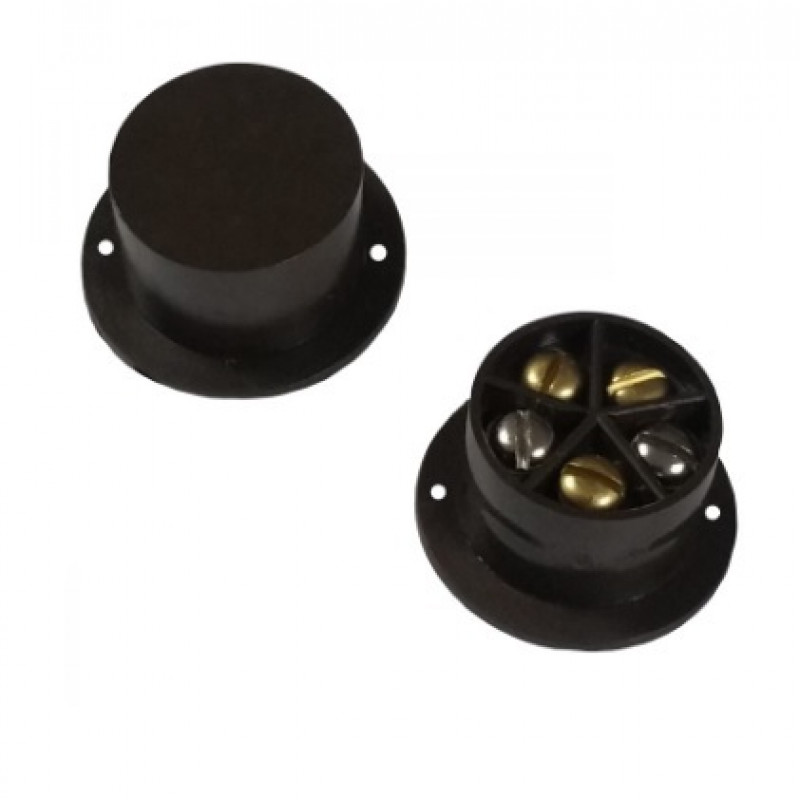

Knight Plastics (A50B) 5-Terminal Single Reed Flush Contact - Brown

Knight Plastics (A50B) 5-Terminal Single Reed Flush Contact Brown (Round Plate)

A basic 5 screw flush contact . Two nickel screws to govern the reed switch and 3 spare screws for any custom requirements.Comes complete with fitting tacks (Speedfit).

Key Features:

• 5-Terminal Flush Single Reed Contact (Round Plate - Speedfit)
• Colour: Brown
• Environmental Class 2
• Operating Gap: 14mm (approx)
• Dimensions: 20mm dia
• Terminals : 5- Screw

Specifications:

Description:

• Grade 1 Class II
• 5 Terminal Flush Contact Single Reed
• Round Plate

Operating Gap:

• 14mm (Approx)

Materials:

• High Impact Polystyrene
• Stainless Steel Plate

Magnet:

• Ferrite or Alnico V

Contact Material:

• Rhodium

Voltage Range:

• 1 – 100v DC
• 125v AC Max

Switching Current:

• 500mA Max DC
• 500mA Max AC

Temperature Range:

• -40oC to +50oC

Colours:

• White (No Suffix)
• Brown (Suffix B)
• Fixing Screws Provided
