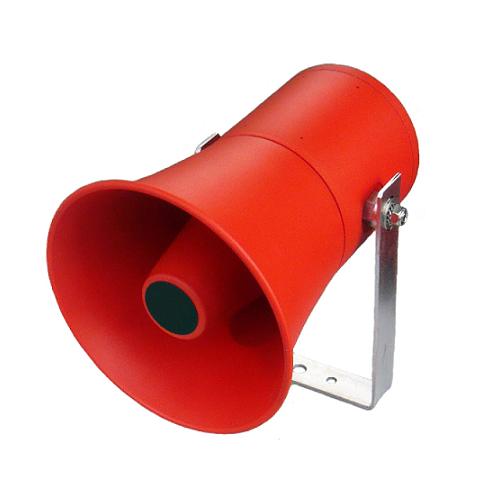

Klaxon, TCB-0017, Red EXD Sounder Up to 115 dB (24 VDC)

Klaxon, TCB-0017, Red EXD Sounder Up to 115 dB (24 VDC)

  • Brand:Klaxon
  • Product Code:TCB-0017
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Klaxon, TCB-0017, Red EXD Sounder Up to 115 dB (24 VDC)

The EXD Sounder has been approved for use in potentially explosive atmospheres and very harsh environmental conditions.

The unit incorporates a three stage alarm option with sixty three tones to choose from which includes four tones that can be recorded or customised by the installer. All tones can be pre-set during installation.

The units also have the ability to be fitted with a telephone initiation function and can be used as the second ring output indicator for telephones when installed in very noisy environments.

The design allows for termination inside the enclosure. The sounder is supplied with a mounting bracket as standard.

Key Features:

  • Approved by ATEX and CQST • IMETRO and IECEX (Pending)
  • ATEX: II 2G Exd IIC T4 - T6 (incorporating IIA & IIB)
  • Zones 1&2, Zones 21&22 (Pending)
  • Conforms to EN (IEC) 60079-0 EN (IEC) 60079-1 and EN54
  • Volume control
  • Dustproof & Weatherproof

Specifications:

  • IP Rating: IP66/67
  • Operating Temp: -40ºC to +70ºC
  • Construction: Glass Reinforced Plastic
  • Cable Entries: 4 x M20, M25, 1/2”NPT, 3/4”NPT
  • Weight: 5.4kg

For more details, please refer with our attached datasheet.
