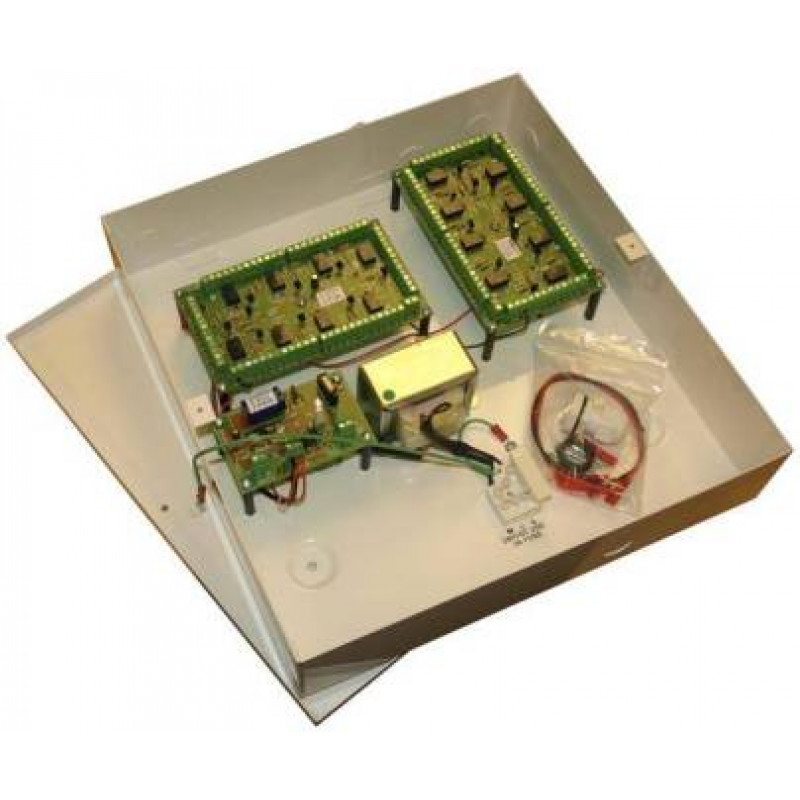

Dantech, DA262-16, 16 Way Relay Unit with Power Supply within Mild Steel Enclosure

Dantech, DA262-16, 16 Way Relay Unit with Power Supply within Mild Steel Enclosure

Each relay operates at 12V DC and can switch up to 30V DC 1A. The power supply unit provides 12V (13.7V) DC 1.5A to power the relay PCB cards. Each relay card also has an inhibit line that can de-energise all 8 relays per pcb when pulled high. A VRLA battery of up to 7Ah can be fitted within the enclosure, which the power supply can charge to enable battery back-up.

Typical uses include changing the polarity of signals and switching higher currents and voltages. It can also be used as an interface between different systems e.g. intruder alarm to access control or fire alarm to access control.

This unit can also be useful when the control of a number of components (e.g. door locks) needs to be over-ridden by another system (e.g. a fire panel).

Key Features:

• Input 230V AC @ 50Hz (+/- 10%)
• House and charge 7Ah VRLA battery
• Relay operating voltage 12V DC
• Available with 8 or 16 DPCO contacts
• Current consumption <20mA each relay
• Relay contact rating 30V DC 1A
• Tamper switch
• Mild steel enclosure

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
