Dantech, DA225, 12V DC Setting Inhibitor - Plastic Cased
- Brand:Dantech
- Product Code:DA225
- Availability:Please Call or Email Us to Check Availability

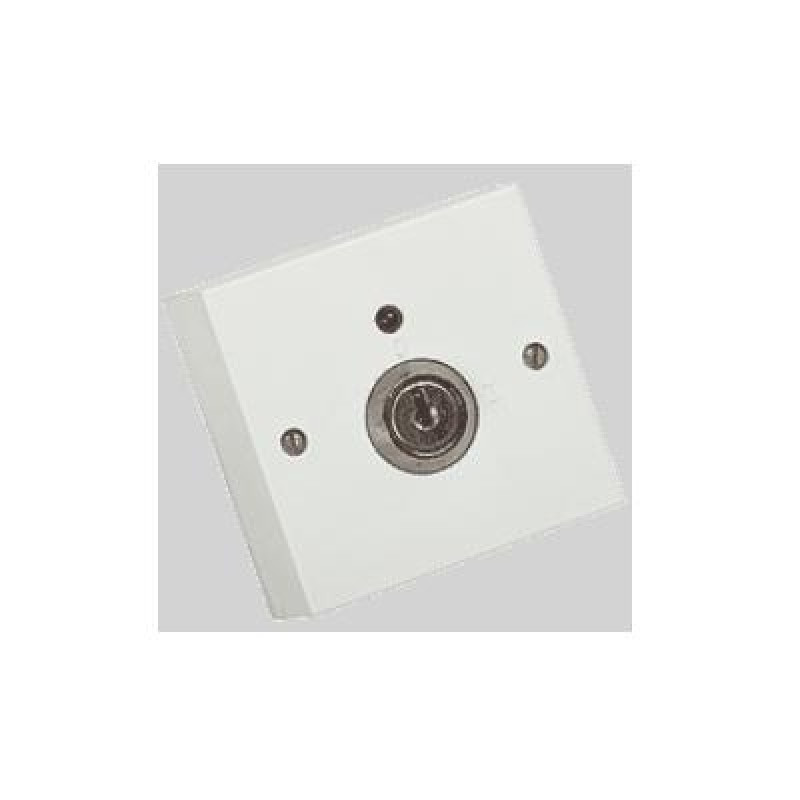

DA225, 12V DC Setting Inhibitor - Plastic Cased
Setting Inhibitor. This unit was originally designed to inhibit setting of an intruder alarm system after an alarm activation. With its double pole key switch, double pole relay and LED, it can be used in many other applications where a relay and key switch are required. 12V DC operation. Plastic cased.
All metal cases are finished in a white gloss powder coating. All plastic cases are white ABS.
Specifications:
- Shunt Relay - DPCO
- Keyswitch - DPCO
- Input - VARIOUS
- Sounder - NO
- Current Consumption - 30mA
- Tamper Switch - YES
- Weight (Kg) - 0.100
- Dimensions W x H x D - 65 x 65 x 40
For more details, please refer with our attached datasheet.
