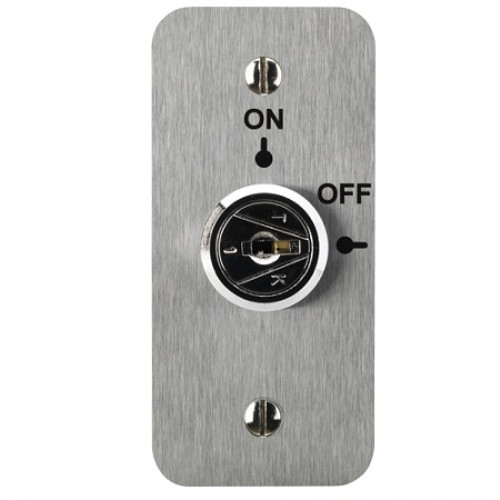

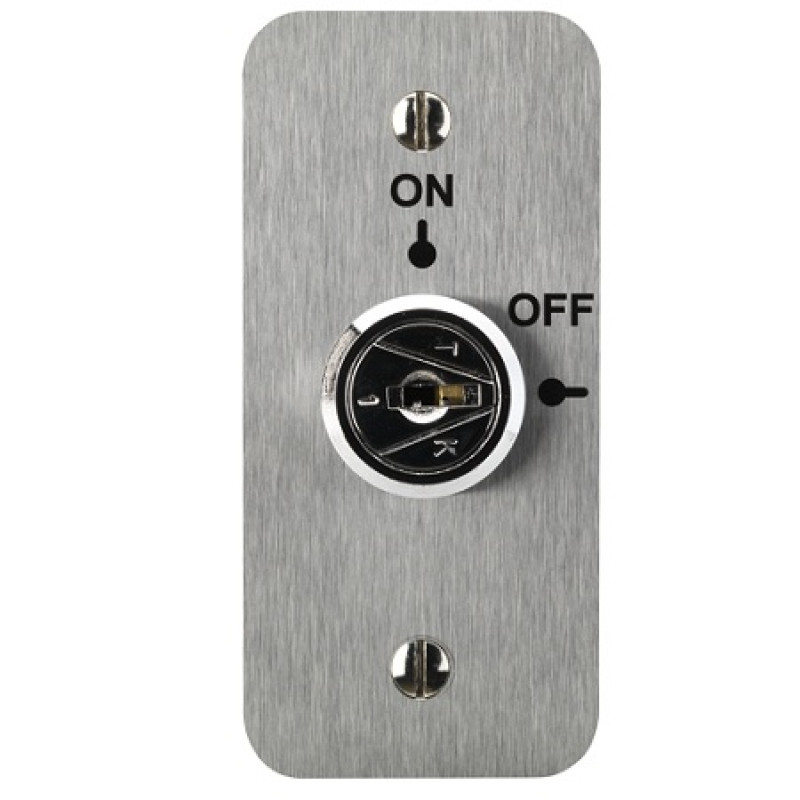

3E0661-1NS-DP, KS Maintain. 2 Keys Narrow Stile Double Pole SSS, ON/OFF

3E0661-1NS-DP, Keyswitch Maintained 2 Keys Narrow Stile Double Pole SSS Laser Etched ON/OFF

Key Features:

• 2 Position
• Maintained contact (key pulls in both positions)
• 2 x normally open, 2 x normally closed circuit
• Laser etched legend
• 2 keys supplied (additional keys available to order)
• Keyed alike as standard (key differs available)

Specifications:

ELECTRICAL:

• Contact Resistance (initial): <20mΩ
• Voltage Proof: 2kV for 1 minute (terminals to earth)
• Life: 50,000 Operations (minimum)
• Contact Rating: 4A @ 125 Vac (Resistive load), 10A @ 12 Vdc (Resistive load)
• Circuit Code: 2 x Normally open & 2 x Normally closed
• Indexing: 90° Key removable in both positions

MECHANICAL:

• Keys: Nickel plated brass with key number
• Contact Terminals: Fine silver/ Silver plated
• Moulding: Self extinguishing glass filled nylon
• Tumbler Mechanism: 5 Disc tumbler cylinder
• Keys: Bright Nickel plated alloy

ENVIRONMENTAL:

• Operating Temperature Range:-20°C to +85°C

MATERIAL:

• Plate material: Grade 304 DP1 stainless steel (2mm)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
