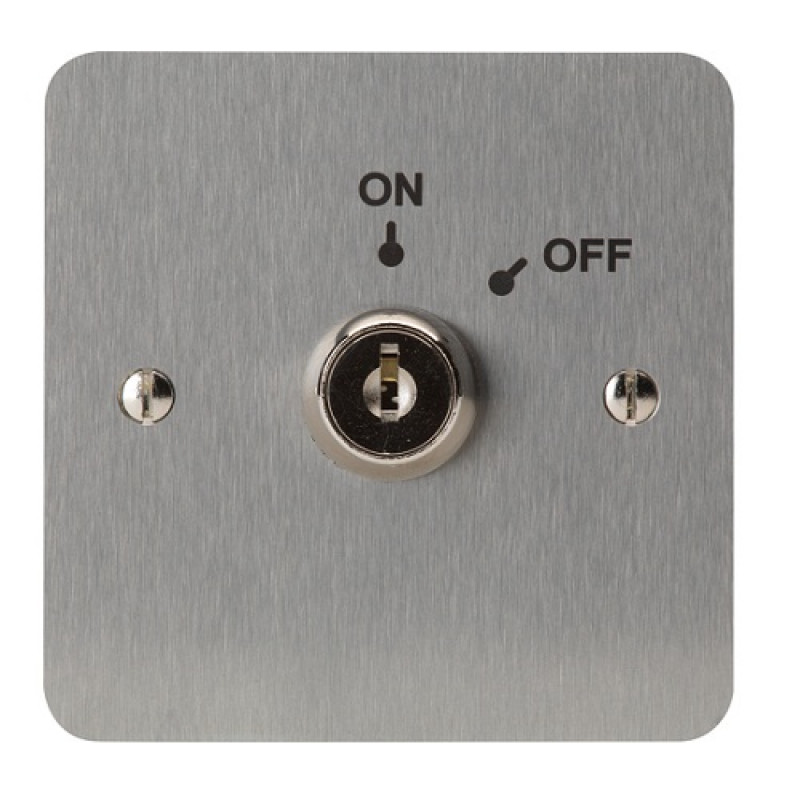

3E0660-1, Keyswitch Momentary 2 Keys 1 Gang SSS Laser Etched ON/OFF
- Brand:3E Security
- Product Code:3E0660-1
- Availability:Please Call or Email Us to Check Availability
3E0660-1, Keyswitch Momentary 2 Keys 1 Gang SSS Laser Etched ON/OFF
The 0660 Keyswitch offers high reliability at an economical price. Momentary contact, spring return, providing 1 x changeover contact.
Key is removable in the "ON" position only, the keyswitch is keyed alike as standard, keyed to differ versions are also avaliable. Legends are laser etched ensuring permanent and clear text, we can also provide custom legends, and are available to special order.
This product is supplied flush mount, complete with two keys, electrical backbox, instructions and fixing screws.
Key Features:
- 2 Position
- Momentary contact
- Key biased (spring return)
- 1 x normally open, 1 x normally closed, 1 x common circuit
- Laser etched legend
- 2 keys supplied (additional keys available to order)
- Keyed alike as standard (key differs available)
Specifications:
- Insulation Resistance: <500M – Ohms typ
- Life: 10,000 Make and Break Cycles
- Contacts Rating: 4A 125Vac / 28Vdc
- Indexing: 45°
- Keys: Nickel Plates Brass
- Tumbler Mechanism: 4 Disc tumbler cylinder
- Contacts / Terminals: Silver Plated / Brass
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
