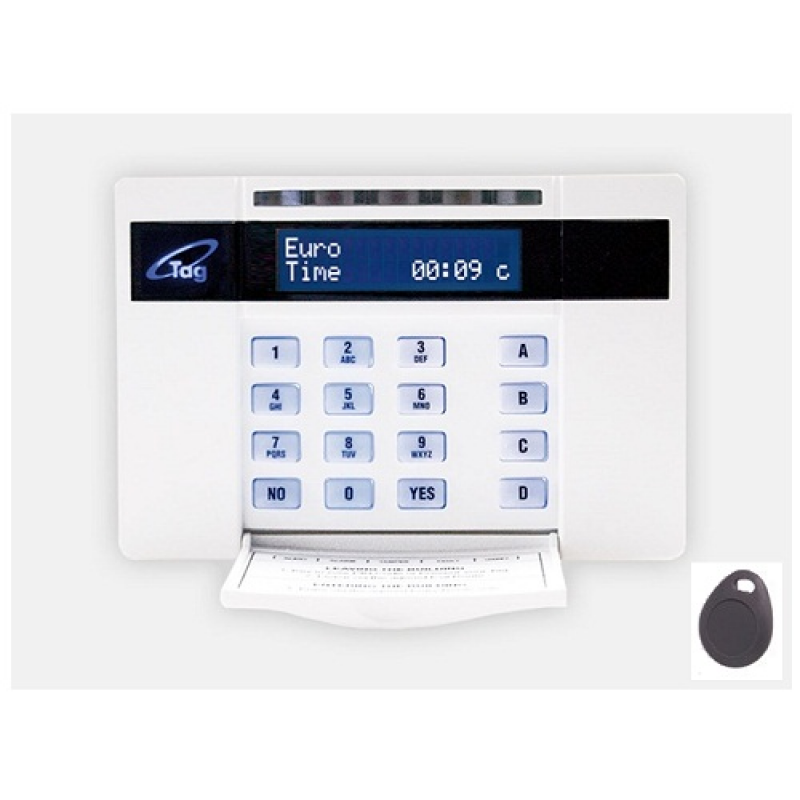

Pyronix (EUR-068) LCD Remote Keypad with Proximity Reader

Pyronix (EUR-068) LCD Remote Keypad with Proximity Reader

Ideal for use on the EURO and Enforcer control panels in a residential or commercial setting. You can quickly easily and securely arm and disarm your security system with either a proximity tag or by typing in your user code.

Security Code
This function is needed to address each keypad connected to the PCX control panel.

Keypads and readers
This function is used to assign each keypad to the RS485 BUS and any areas that are programmed.

LEDs
Ready: Indicates that no inputs are active and the control panel is ready to be armed.
Alarm: Indicates an alarm activation has occurred.
Tamper: Indicates a tamper activation has occurred.
Fault: Indicates a fault warning on the control panel. If flashing, the engineers menu has been accessed.
Disarmed: Indicates the control panel has been disarmed

Key Features:

• EURO 068 - LCD Keypad with proximity reader
• Quick and easy to set or unset your security system with the built-in Proximity Tag Reader or keypad
• Backlit indication of alert, alarm, tamper, fault and unset
• Adjustable keyclick volume
• Complies with EN50131-1

Technical Specifications:

Setting devices technical characteristics

• Plastic LCD keypad with icon display : Yes
• Intergrated prox reader : Yes
• IP 64 rated external prox reader : No
• Activate output automation : Yes
• Backlit Keys : Yes
• Tamper protection : Yes

Inputs & outputs

• Onboard wired inputs : 2
• Outputs on board : 1

Environmental and operating features

• Certified operating temperature : -10°C to +40°C
• Physical dimensions (H x W x D) : 99 x 144 x 34mm
• Weight : 256g

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-3:2009, EN50131-1:2006+A1:2009, PD6662:2010
• Certification type : Self certified
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 3
