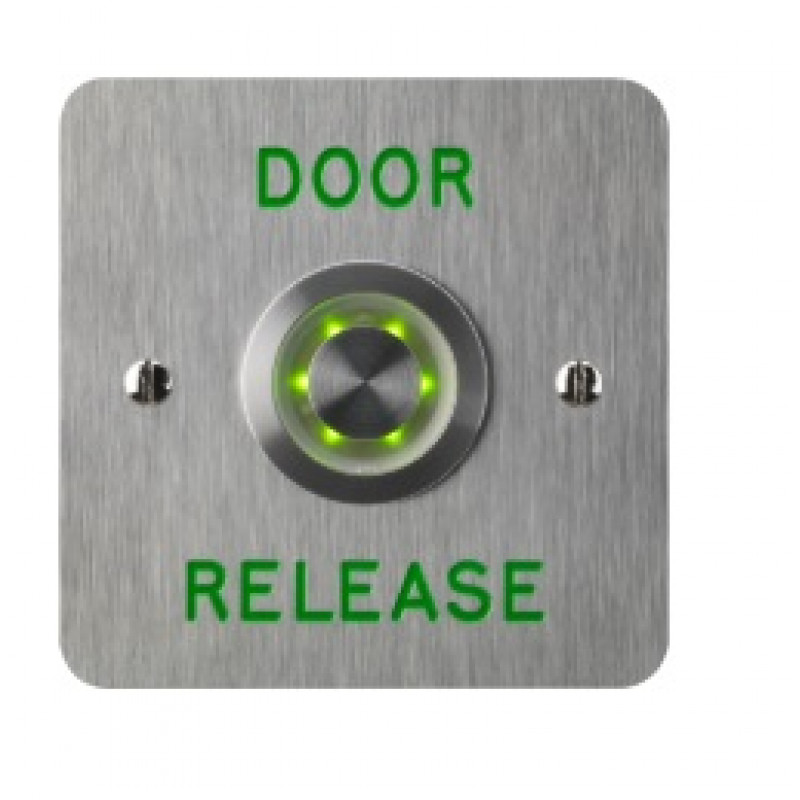

3E0659NI-1-E-DR, VR 30mm mount 1 Gang SSS Engraved "Door Release"
- Brand:3E Security
- Product Code:3E0659NI-1-E-DR
- Availability:Please Call or Email Us to Check Availability
3E0659NI-1-E-DR, VANDAL RESISTANT 30mm mount 1 Gang SSS Engraved "Door Release" IP66 Ingress Protection Momentary contact 12Vdc Independent bi-colour LED illumination (green/red) 1 x N/O, 1 x N/C, 1 x C Quality stainless steel switch body construction
VANDAL RESISTANT WITH ILLUMINATION
- IP67 Ingress Protection
- Momentary contact
- N/O, N/C, C
- 12Vdc Independant bi-colour LED illumination
- Quality stainless steel switch body construction
- RoHS compliant
SPECIFICATION:
ELECTRICAL
| Life | 0.2 million actuations at Rated Switching Capacity |
| Insulation Resistance | >100MΩ |
| Contact Resistance (initial) | <30mΩ |
| Rated Switching Capacity | 750W |
| Switching Current | max. 5 / 3 A |
| Switching Voltage | max. 125 / 250 VAC |
MECHANICAL
| Operating Force | 4.5N |
| Life (nominal) | 1.5 million actuations |
| Contact Bounce | <5ms |
| Travel | 0.8mm |
ENVIRONMENTAL
| Operating Temperature Range | -25°C to +85°C |
| Ingress Protection | IP 67 |
| Impact Rating | IK 07 |
| Contact Material | Ag |
| Housing | Stainless steel |
| Actuator Material | Stainless steel |
MATERIAL
| Plate material | Grade 304 DP1 stainless steel (2mm) |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
