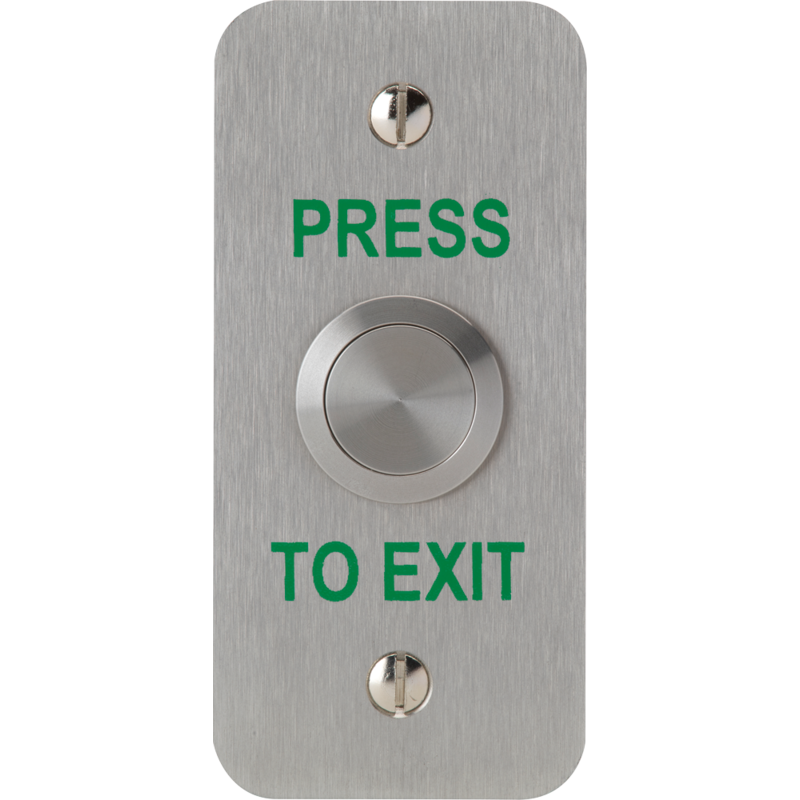

3E0658N-1NS-PTE, VANDAL RESISTANT BUTTON 19mm mount Narrow Stile SSS "Press to Exit"
- Brand:3E Security
- Product Code:3E0658N-1NS-PTE
- Availability:Please Call or Email to Checkout
3E0658N-1NS-PTE, VANDAL RESISTANT 19mm mount Narrow Stile SSS ""Press to Exit"" IP67 Ingress protection Momentary contact 1 x N/O, 1 x N/C, 1 x C Silver contacts
VANDAL RESISTANT BUTTON
- IP67 Ingress protection
- Momentary contact
- N/O, N/C, C
- Silver contacts
- -25°C to +85°C operating range
- Impact rating: IK07
- Short actuation travel (0.8mm)
- 1.7mm protrusion from panel
SPECIFICATION:-
ELECTRICAL
| Life | 0.2 million actuations at Rated Switching Capacity |
| >100MΩ | |
| Contact Resistance (initial) | <30mΩ |
| 750W | |
| max. 5 / 3 A | |
| max. 125 / 250 VAC |
MECHANICAL
| Operating Force | 4.5N |
| Life (nominal) | 1.5 million actuations |
| Contact Bounce | <5ms |
| Travel | 0.8mm |
ENVIRONMENTAL
| Operating Temperature Range | -25°C to +85°C |
| Ingress Protection | IP 67 |
| Impact Rating | IK 07 |
| Contact Material | Ag |
| Actuator Material | Stainless steel |
| Stainless steel |
MATERIAL
| Grade 304 DP1 stainless steel (2mm) |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
