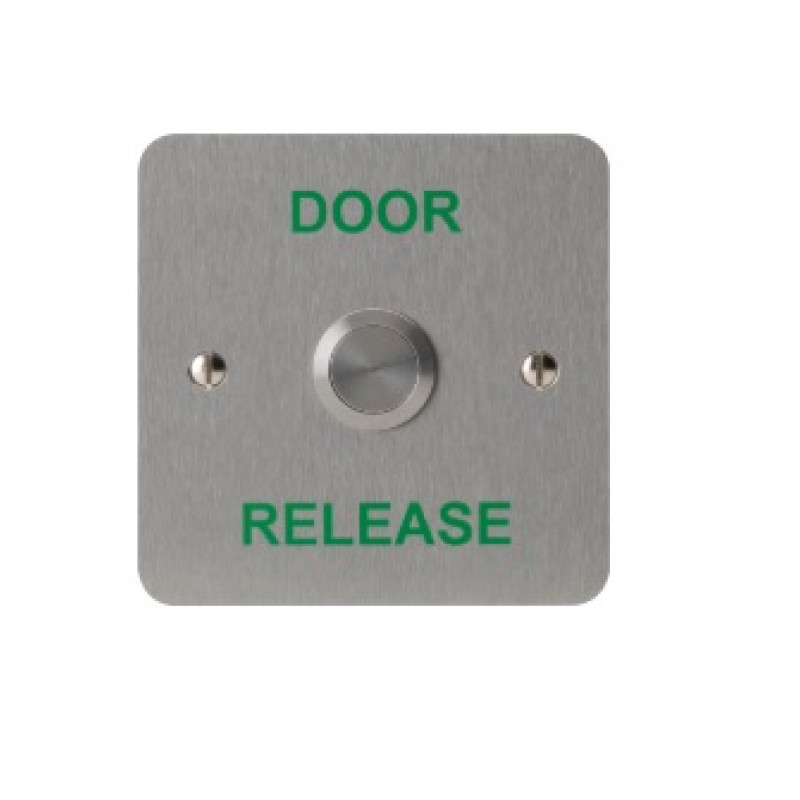

3E0658N-1DR, VANDAL RESISTANT BUTTON 19mm mount 1 Gang SSS "Door Release"
- Brand:3E Security
- Product Code:3E0658N-1DR
- Availability:Please Call or Email to Checkout
3E0658N-1DR, VANDAL RESISTANT 19mm mount 1 Gang SSS ""Door Release"" IP67 Ingress protection Momentary contact 1 x N/O, 1 x N/C, 1 x C Silver contacts
HIGH IMPACT PUSH BUTTON
- IP67 Ingress protection
- Momentary contact
- N/O, N/C, C
- Silver contacts
- -25 Deg. C to +85 Deg. C operating range
- Impact rating: IK07
- Short actuation travel (0.8mm)
- 1.7mm protrusion from panel
The 3E0658N-1DR vandal resistant button is highly suitable for applications in harsh environments. Panel sealed to IP67 (front side actuation area) and IK 07 shock resistance. Both switch body and switch actuator are machined precisely from quality stainless steel to stringent tolerances. The switch has a machined return which accommodates the neoprene “o” ring to seal the unit to the panel without visible signs of the washer.
A panel projection of just 1.7mm increases the resistance to attack.
The switch has a momentary contact providing one normally open, one normally closed and one common terminal (terminals are soldered with 16/0.2mm and then a chloroprene sleeve is positioned to increase protection).
Product is supplied flush mount, complete with fixings and a single gang, 37mm galvanised steel electrical backbox.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
