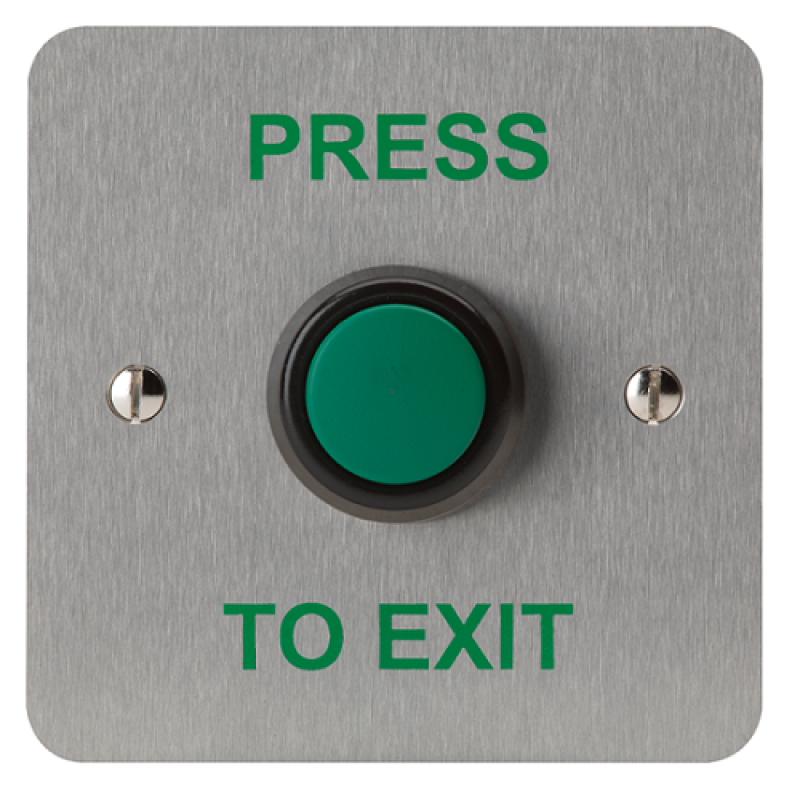

3E0656-1PTE, HIGH IMPACT PUSH BUTTON 1 Gang SSS "Press to Exit"

3E0656-1PTE, HIGH IMPACT PUSH BUTTON 1 Gang SSS "Press to Exit"

The 3E0656-1PTE push button has a raised actuator and the black bezel provides a good contrast to the panel, making the unit highly visible to the user.

Panel sealed to IP67 (frontal presentation). Due to the construction and the materials used, the 0656 is robust and capable of surviving the impact of a 5kg mass dropped from 40cm (20J).

The switch has a momentary contact providing one normally open and one normally closed circuit. A double pole / double throw (two times normally open and two times normally closed circuits) version is available to special order.

The switch plate is laser cut from two millimetre grade 304 dull polish stainless steel. Legends are screen printed using a two part self etching ink. Custom engraving including braille and international text is also available. We can laser etch your logo on the plate to help build your brand identity.

Products are supplied flush mount, complete with screws and 35mm galvanised steel electrical backbox.

Key Features:

• IP67 Ingress protection
• Momentary contact
• 1 x Normally Open & 1 x Normally Closed Circuit
• Anti-rotational mounting
• Silver contacts
• -40°C to +135°C operating range
• Impact rating: 20J

For more details, please refer with our attached datasheet.
