3E0659NI-GB-DR, VR button, 12Vdc halo illumination red (green), IP66, surface mount (grey/black) DR
- Brand:3E Security
- Product Code:3E0659NI-GB-DR
- Availability:Please Call or Email Us to Check Availability

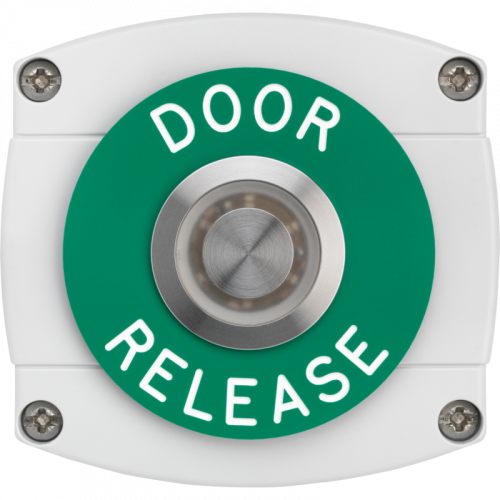

3E0659NI-GB-DR, Vandal resist stainless steel switch body, Momentary contact,12Vdc Independent bi-colour LED Spot / ring illumination - Red / Green, Surface Mount, IP66 Rated Enclosure Grey/Black c/w legend disc "Door Release"
IP66 SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress Protection
- Momentary contact
- N/O, N/C, C
- RoHS compliant
- 12Vdc Independant bi-colour LED illumination
- Quality stainless steel switch body construction
- M16/20 Pre-moulded knockouts
DESCRIPTION:
The 3E0659NI-GB-DR is just one of the variants in the range of high impact, externally rated surface mount buttons. The robust two part cross polymer housing incorporates an integral gasket that seals the unit to IP66. This product is a reliable solution for external egress and other outdoor switching applications.
The base incorporates premoulded conduit knockouts (both M16 and M20). These aid installation by ensuring effective cable management.
Legend discs are manufactured from an externally rated bi-colour engraving laminate which is available in a variety of colour combinations. The discs are gasketed using an open cellular foam, when the switch is tightened to the unit, the cell closes to maintained IP rating.
The bi-colour illumination (green and red) can be wired in numerous ways to give pleasant visual feedback to the user. The Dual halo illumination switches are particularly effective in low light environments.
SPECIFICATION:
ELECTRICAL
| Life | 0.2 million actuations at Rated Switching Capacity |
| Insulation Resistance | >100MΩ |
| Contact Resistance (initial) | <30mΩ |
| Rated Switching Capacity | 750W |
| Switching Current | max. 5 / 3 A |
| Switching Voltage | max. 125 / 250 VAC |
MECHANICAL
| Travel | 0.8mm |
| Operating Force | 4.5N |
| Life (nominal) | 1.5 million actuations |
| Contact Bounce | <5ms |
ENVIRONMENTAL
| Ingress Protection | -25°C to +85°C |
| Ingress Protection | IP 67 |
| Impact Rating | IK 07 |
| Contact Material | Ag |
| Housing | Stainless steel |
| Actuator Material | Stainless steel |
MATERIAL
| Plate material | Grade 304 DP1 stainless steel (2mm) |
For more details, please refer with our attached datasheet.
