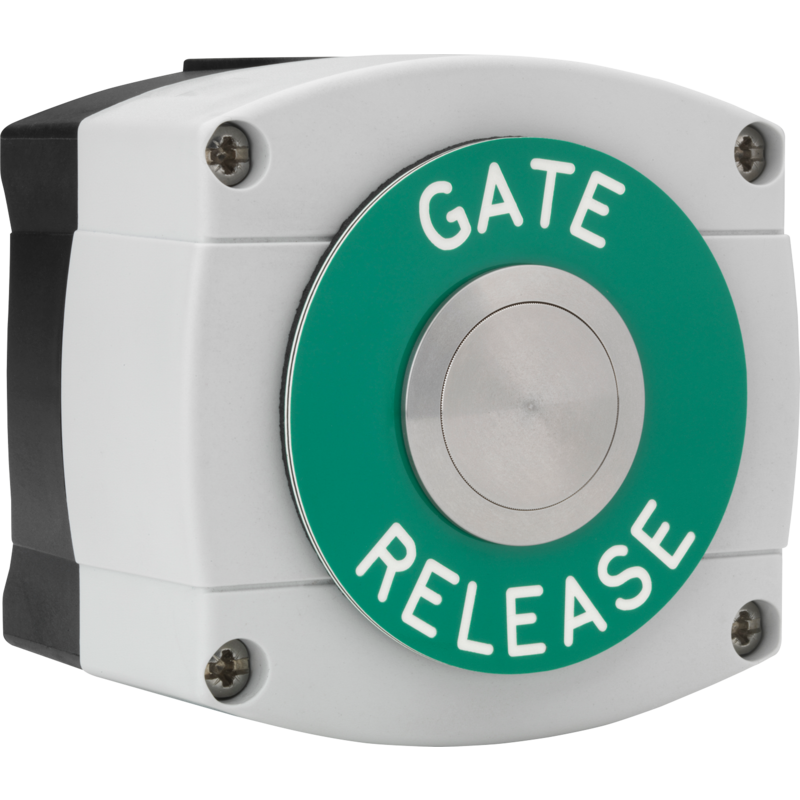

3E0659N-GB-GR, Vandal resist stainless steel switch body, Momentary contact, Surface Mount, IP66 Rated Enclosure Grey/Black c/w legend disc "Gate Release"
IP66 SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress Protection
- Momentary contact
- N/O, N/C, C
- RoHS compliant
- Quality stainless steel switch body construction
- M16/20 Pre-moulded knockouts
SPECIFICATION:
ELECTRICAL
| Life |
0.2 million actuations at Rated Switching Capacity |
| |
>100MΩ |
| Contact Resistance (initial) |
<30mΩ |
| |
750W |
| |
max. 5 / 3 A |
| |
max. 125 / 250 VAC |
MECHANICAL
| Travel |
0.8mm |
| Operating Force |
4.5N |
| Life (nominal) |
1.5 million actuations |
| Contact Bounce |
<5ms |
ENVIRONMENTAL
| Operating Temperature Range |
-25°C to +85°C |
| Ingress Protection |
IP 67 |
| Impact Rating |
IK 07 |
| Contact Material |
Ag |
| |
Stainless steel |
| Actuator Material |
Stainless steel |
MATERIAL
| |
Robust cross polymer enclosure |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
