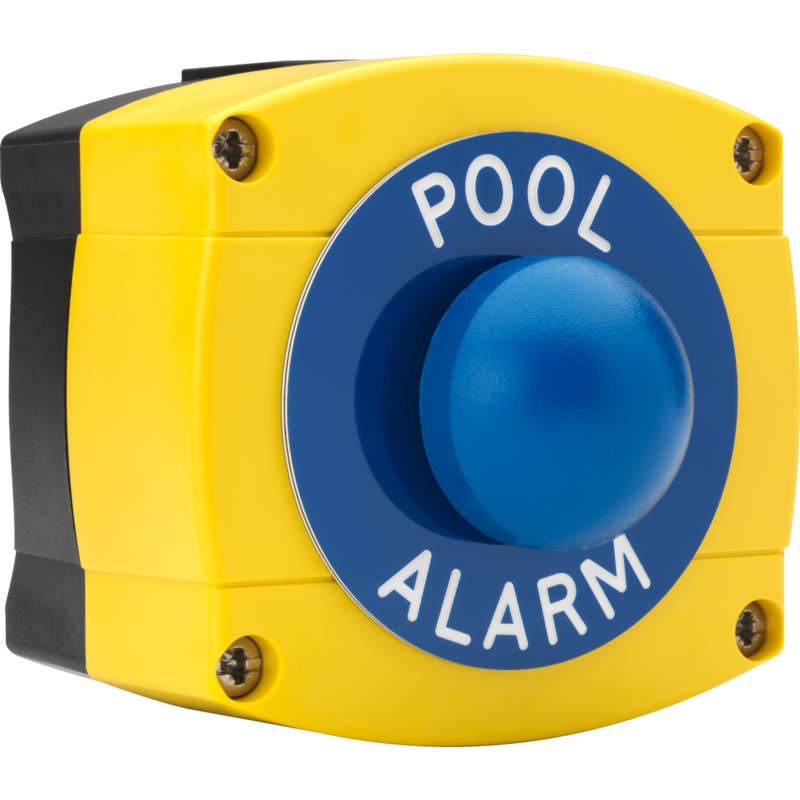

3E0657B-YB-PA, IP66 Surface mount blue dome button, yellow/black housing, blue disc – engraved POOL ALARM
- Brand:3E Security
- Product Code:3E0657B-YB-PA
- Availability:Please Call or Email Us to Check Availability
3E0657B-YB-PA, Blue Dome, Surface Mount, IP66 Rated Enclosure Yellow/Black c/w legend disc “Pool Alarm”
IP66 SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- High impact
- RoHS compliant
- M16/20 Pre-moulded conduit knockouts
DESCRIPTION:
The 3E0657B-YB-PA is just one of the variants in the range of high impact, externally rated surface mount buttons. The robust two part cross polymer housing incorporates an integral gasket that seals the unit to IP66, coupled with the original green dome, makes the unit an effective and reliable solution for external egress and other outdoor switching applications.
The housings are available in two colour combinations – grey lid with a black base and black base with a highly contrasting yellow lid. Both models are easily identifiable to the user. The base incorporates pre-moulded conduit knockouts (both M16 and M20), these aid installation by ensuring effective cable management.
Legend discs are manufactured from an externally rated bi-colour engraving laminate which is available in a variety of colour combinations. The discs are gasketed using an open cellular foam, when the switch is tightened to the unit, the cells close to maintain the IP rating. Custom legend discs are available to special order to suit particular applications – please call to discuss your requirements.
SPECIFICATION:
ELECTRICAL
| Life | 100,000 Cycles @ 20°C, 50,000 Cycles @ 70°C |
| 1GΩ | |
| Dialectic Strength | 1000v RMS |
| Contact Resistance (initial) | 25mΩ |
MECHANICAL
| Travel | 2.5mm |
| Operating Force | 7N |
| Life (nominal) | 2 x 10 cycles |
| Contact Bounce | 5ms |
ENVIRONMENTAL
| Terminal Material | 5µm bright acid tin plate, nickel |
| Shock | 50g |
| Operating Temperature Range | -40°C to +125°C |
| Ingress Protection | IP66 |
| Impact Rating | 20J |
| Contact Material | Fine silver |
| Body Material | Zinc alloy |
| Actuator Material | Zinc alloy |
MATERIAL
| Robust cross polymer enclosure |
For more details, please refer with our attached datasheet.
