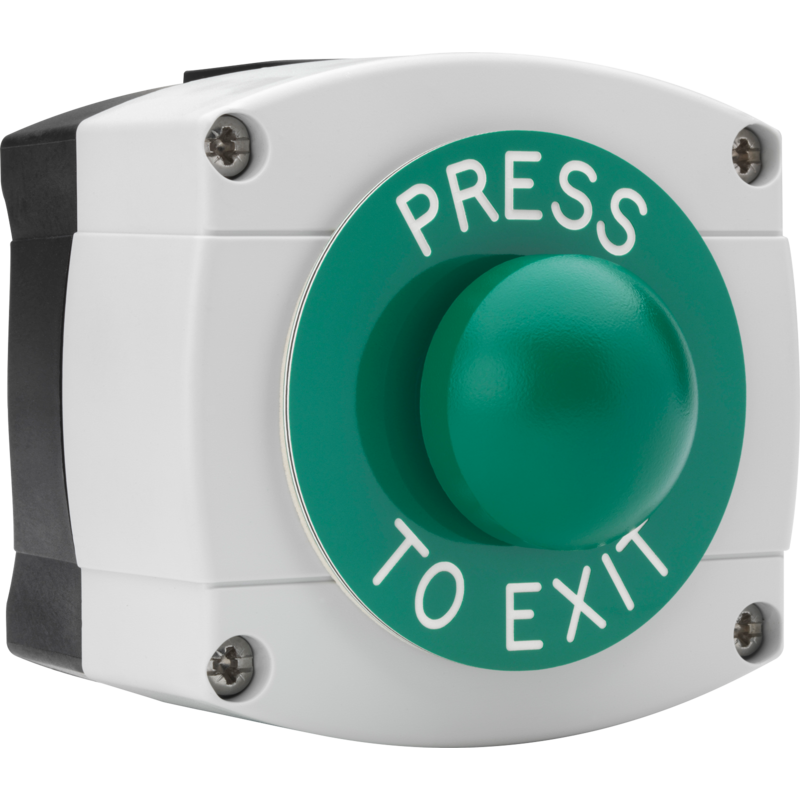

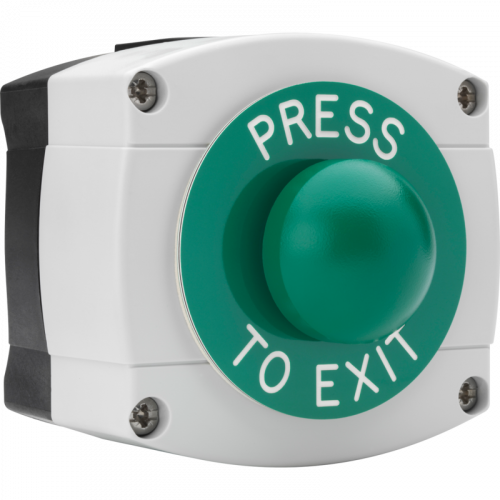

3E0657-GB-PTE, IP66 Surface mount green dome button, grey/black housing, green disc – engraved PTE
- Brand:3E Security
- Product Code:3E0657-GB-PTE
- Availability:Please Call or Email Us to Check Availability
3E0657-GB-PTE, Green Dome, Surface Mount, IP66 Rated Enclosure Grey/Black c/w green legend disc “Press To Exit”
IP66 SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- High impact
- RoHS compliant
- M16/20 Pre-moulded conduit knockouts
DESCRIPTION:
The 3E0657-GB-PTE is just one of the variants in the range of high impact, externally rated surface mount buttons. The robust two part cross polymer housing incorporates an integral gasket that seals the unit to IP66, coupled with the original green dome, makes the unit an effective and reliable solution for external egress and other outdoor switching applications.
The housings are available in two colour combinations – grey lid with a black base and black base with a highly contrasting yellow lid. Both models are easily identifiable to the user. The base incorporates pre-moulded conduit knockouts (both M16 and M20), these aid installation by ensuring effective cable management.
Legend discs are manufactured from an externally rated bi-colour engraving laminate which is available in a variety of colour combinations. The discs are gasketed using an open cellular foam, when the switch is tightened to the unit, the cells close to maintain the IP rating. Custom legend discs are available to special order to suit particular applications – please call to discuss your requirements.
SPECIFICATION:
ELECTRICAL
| Life | 100,000 cycles at 20°C / 50,000 cycles at 70°C |
| Contact Resistance (initial) | 25mΩ |
| 1GΩ | |
| Dialectic Strength | 1000V RMS |
MECHANICAL
| Contact Bounce | 6mm |
| Life (nominal) | 2 x 10 to the power of 6 cycles |
| Operating Force | 7N |
| Panel Thickness | 5ms |
| Travel | 2.5mm |
ENVIRONMENTAL
| Actuator Material | Zinc alloy |
| Body Material | Zinc alloy |
| Contact Material | Fine silver |
| Impact Rating | 20J |
| Ingress Protection | IP67 |
| Operating Temperature Range | -40°C to +125°C |
| Shock | 50g |
| Terminal Material | 5µm bright acid tin plate nickel |
MATERIAL
| Robust cross polymer enclosure |
For more details, please refer with our attached datasheet.
