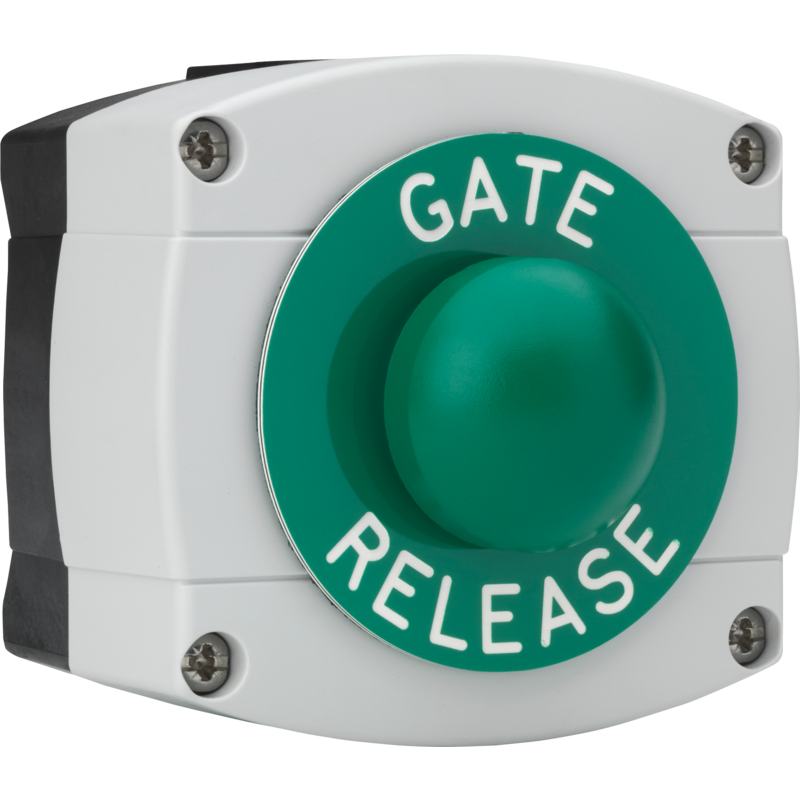

3E0657-GB-GR, IP66 Surface mount green dome button, grey/black housing, green disc – engraved GR
- Brand:3E Security
- Product Code:3E0657-GB-GR
- Availability:Please Call or Email to Checkout
3E0657-GB-GR, Green Dome, Surface Mount, IP66 Rated Enclosure, Grey/Black c/w legend disc “Gate Release”
SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- High impact
- RoHS compliant
- M16/20 Pre-moulded conduit knockouts
SPECIFICATION:
ELECTRICAL
| Life | 100,000 Cycles @ 20°C, 50,000 Cycles @ 70°C |
| 1GΩ | |
| Dialectic Strength | 1000V RMS |
| Contact Resistance (initial) | 25mΩ |
MECHANICAL
| Travel | 2.5mm |
| Operating Force | 7N |
| Life (nominal) | 2 x 10 cycles |
| Contact Bounce | 5ms |
ENVIRONMENTAL
| Terminal Material | 5µm bright acid tin plate, nickel |
| Shock | 50g |
| Operating Temperature Range | -40°C to +125°C |
| Ingress Protection | IP66 |
| Impact Rating | 20J |
| Contact Material | Fine silver |
| Body Material | Zinc alloy |
| Actuator Material | Zinc alloy |
MATERIAL
| Robust cross polymer enclosure |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
