Intelligent Remote Blinds Submodule (ISM05)

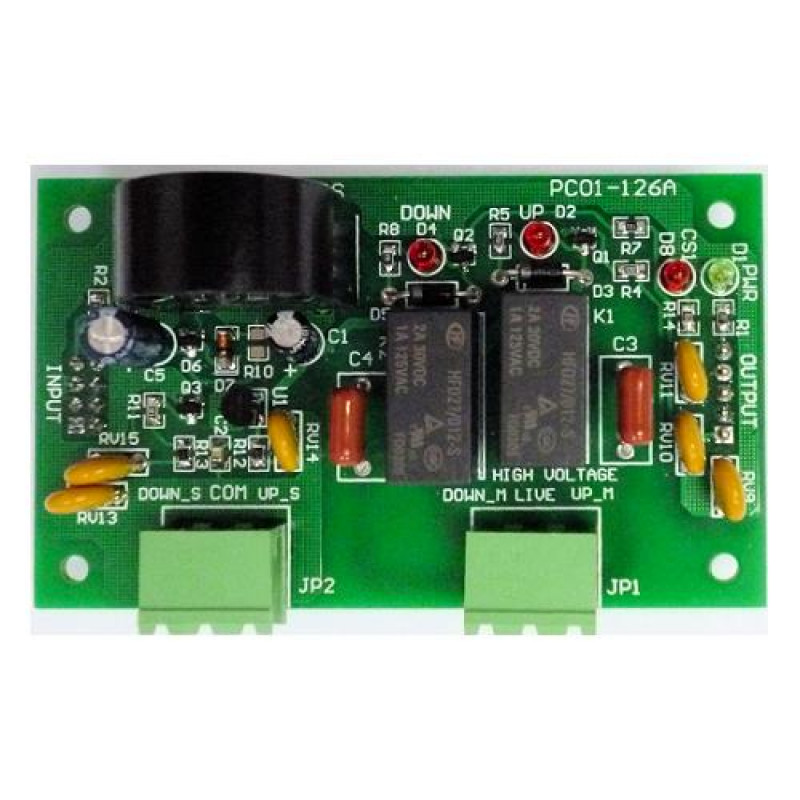

The ISM05 Blinds submodule for IRIO controls is designed to control blinds without needing a Blinds controller. The 230VAC supply is switched to the Up and Down relays to drive the blinds motor. This makes it possible to move the blinds to any position as a percentage of the full range.
A built in current sensor allows the IRIO to know when the motor is in operation and when it has stopped so it can know more accurately its current position. The time required to move from one end to the other is constantly updated so that the IRIO logic can take into account changes due to motor aging. The IRIO can be used standalone for blinds control when Comfort is disconnected by using the manual Up or Down push button connected to the IRIO inputs.
Connections:
To Motor
| UP_M | Connect to the Blind Up terminal |
| LIVE | 230V input (switched to UP and DOWN terminals). Live wires after passing through the Current sensor T1 |
| DOWN_M | Connect to the Blind Down terminal |
To Push Button Switch
| UP_S | Push button switch for Blinds UP is connected between UP_S and COM |
| COM | Common connection for UP_S and DOWN_S switches |
| DOWN_S | Push button switch for Blinds DOWN is connected between DOWN_S and COM |
For up and down buttons, a short press of less than 2 seconds on the pushbutton will move the blinds while pressed. A long press exceeding 2 sec will move the blinds all the way by travel time. Pressing any of the buttons while the blinds is moving will stop the blinds.
