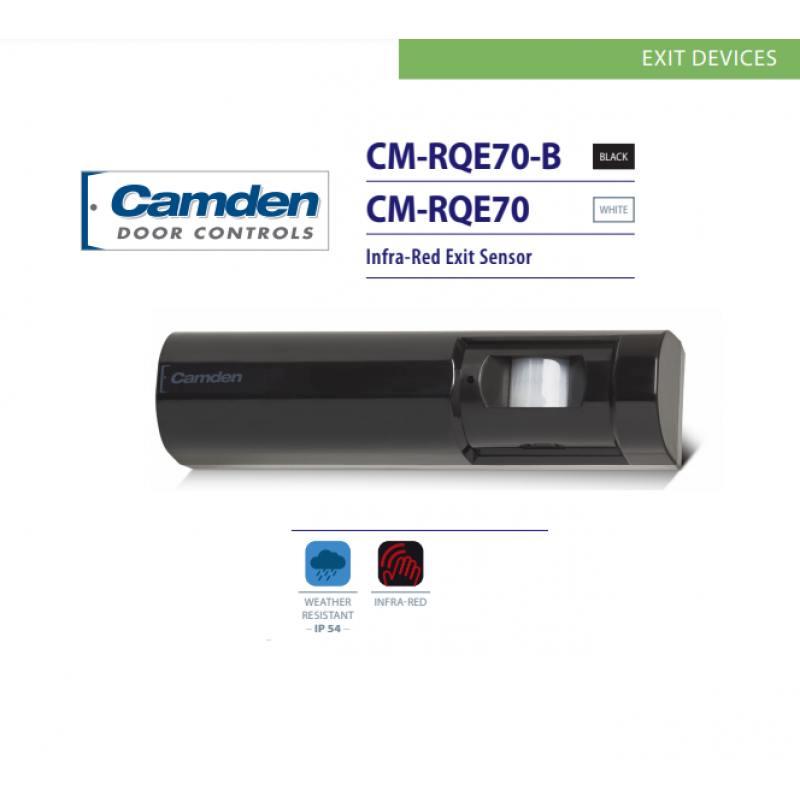

CM-RQE70-B, Black IP45 INFRARED EXIT SENSOR

CM-RQE70-B, Black INFRARED EXIT SENSOR Operating voltage 12~24Vdc/Vac  Active infrared Installation height 3000mm (9.8ft max) IP45 Weather resistance Response speed 0.1~0.2s (WHITE Option Available)

• Operating voltage 12~24Vdc/Vac
• Active infrared
• Installation height 3000mm (9.8ft max)
• IP45 Weather resistance
• Response speed 0.1~0.2s

Description

• Voltage tolerance: ±10%.
• Current draw: AC12V-1.7[VA] (Max), DC12V-110[mA] AC24V-2.1[VA] (Max), DC24V-60 [mA] (at temperature 20°C).
• Operating temperature: -20~60°C (-20 to 140°F).
• Humidity: 0~95% non-condensing.
• Test input 6[mA] (Max)@24[VDC]
• Relay hold time 0.5 sec
• Weight 0.35kg

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
