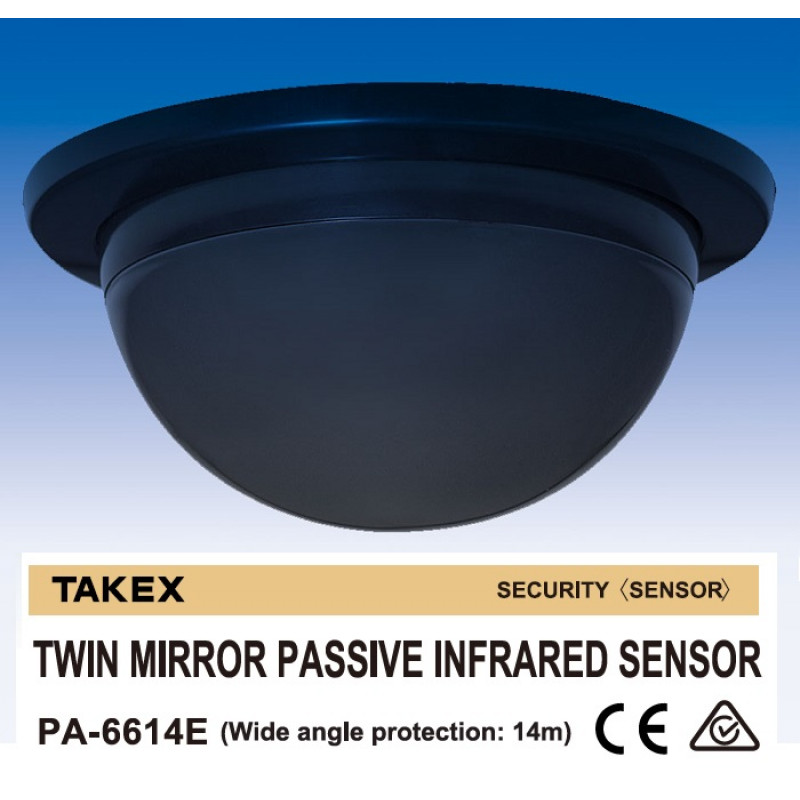

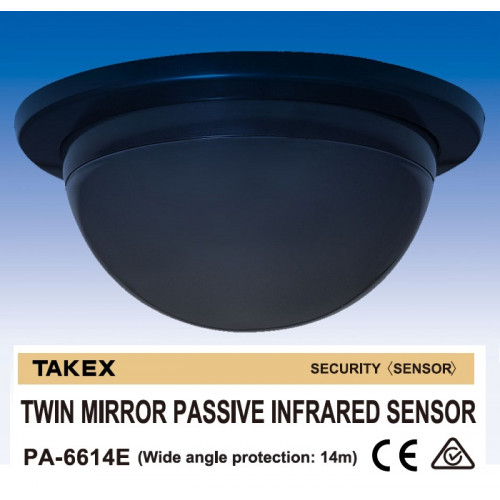

TAKEX (PA-6614E-BL) Black 14m Wide Angle Twin Mirror Optics PIR Mount up to 6m
- Brand:Takex
- Product Code:PA-6614E-BL
- Availability:Please Call or Email Us to Check Availability
TAKEX (PA-6614E-BL) Black 14m Wide Angle Twin Mirror Optics PIR Mount up to 6m
PA-6600 SERIES
PA-6600 series is a novel approach to the issue of false alarms and pet tolerance in PIR motion detectors. Through the use of “Twin Dual-Element” mirror optic sensors, we've created ceiling mount detectors with no equal in the security industry.
Using “non-linear” mirror adjustment technology, PA-6600 series ensure maximum performance over a given area on ceilings up to 6m. Twin PIR’s are not new but Twin-Mirror-Non-Linear PIR’s are. With “rock solid” performance, PA-6600 series offers installers the opportunity to virtually eliminate false alarms from the toughest of environments.
FEATURES:
- Unique twin mirror and two twin pyro optics for high discriminating capability
- Accurately detects human intrusion whilst rejecting nuisance alarms from small animals
- Geared mirror array ensures maximum performance regardless of mounting height up to 6m (PA-6614E)
- Detachable base unit with snap-in/out sensor design for easy installation
- Photo MOSFET relay for silent operation
- High RFI and EMI immunity
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared (Twin mirror)
|
| Coverage |
Wide angle 14m Max.
|
| Sensitive zone |
38 pairs
|
| Supply voltage |
7 to 30V DC (non-polarity)
|
| Current consumption |
8mA Max.
|
| Alarm output |
Dry contact (Semi-Conductor)
(N.C. / N.O. selectable) Reset : Approx. 2 sec., 24V (AC/DC) 0.25A (protective resistor 3.3Ω) |
| Alarm memory |
3 minutes flashing, 47 minutes lighting and automatically reset. (ON/OFF selectable)
|
| LED indicator |
Red : Flashing at warming up
Lighting at alarm (LED can be disabled) Yellow : Flashing at memory activated Lighting at memory indication |
| Adjustment |
Vertically : 23°
Horizontally : 25° (on mounting hole of base) |
| Pulse count |
N/A
|
| Mounting position |
Indoor ceiling
(wall mount with optional attachment BCW-401) |
| Wiring |
Terminals on separate base unit
|
| Weight |
120g (4.23oz)
|
| Appearance |
PA-6614E Body/Cover : White resin
PA-6614E(BL) Body/Cover : Black resin |
| Accessory |
Tapping screw : 2 pcs.
Sensor locking screw : 1 pc. |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-15°C to +55°C(+5° F to +131° F) without condensation
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
