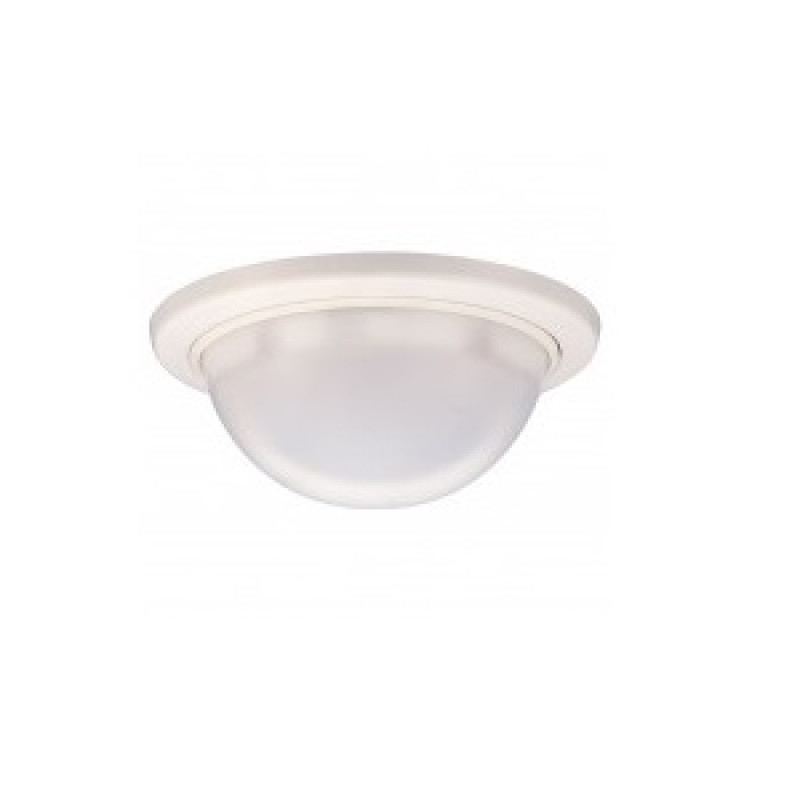

PIR, CEILING MOUNT, INTERNAL Internal PIR, Ceiling Mount, 360°, Up to 18m Dia. @ 5m Mounting Ht. PA-6810E
- Brand:Takex
- Product Code:PA-6810E
- Availability:Please Call or Email to Checkout
PIR, CEILING MOUNT, INTERNAL Internal PIR, Ceiling Mount, 360°, Up to 18m Dia. @ 5m Mounting Ht. PA-6810E
Description
Compact appearance, outstanding performance and low priced
Specifications
| PA-6810E | |
| Product type | Passive infrared sensor |
| Detection system | Passive infrared |
| Coverage | 360 degree: ∅15.2m (∅50ft) max. |
| Sensitive zone | 33 pairs |
| Supply voltage | 10.5 to 30VDC (non-polarity) |
| Current consumption | 25mA max. |
| Alarm signal | Dry contact (semi-conductor) (NO/NC changeover) Reset: approx. 2 sec, 24V (AC/DC) 0.25A (Protective resistor 3.3Ω) |
| Alarm memory | 3 mins. flashing, 47 mins lighting |
| Alarm LED | Red: blinking at warm-up Lighting at alarm (LED disabled) |
| Memory LED | Yellow: blinking at memory activated lighting at memory indication |
| Adjustment | Horizontally: 25 degrees |
| Count changeover | 1/2/3/4 changeover |
| Ambient temperature | -15°C to +55°C (+5°F to +131°F) |
| Mounting position | Indoor ceiling (wall mount with optional BCW-401) |
| Wiring connection | Terminals on separate base unit |
| Weight | 110g (3.85oz) |
| Appearance | Body: ABS resin Cover: PE resin |
| Accessory | Tapping screw: 2pcs Sensor locking screw: 1pc |
