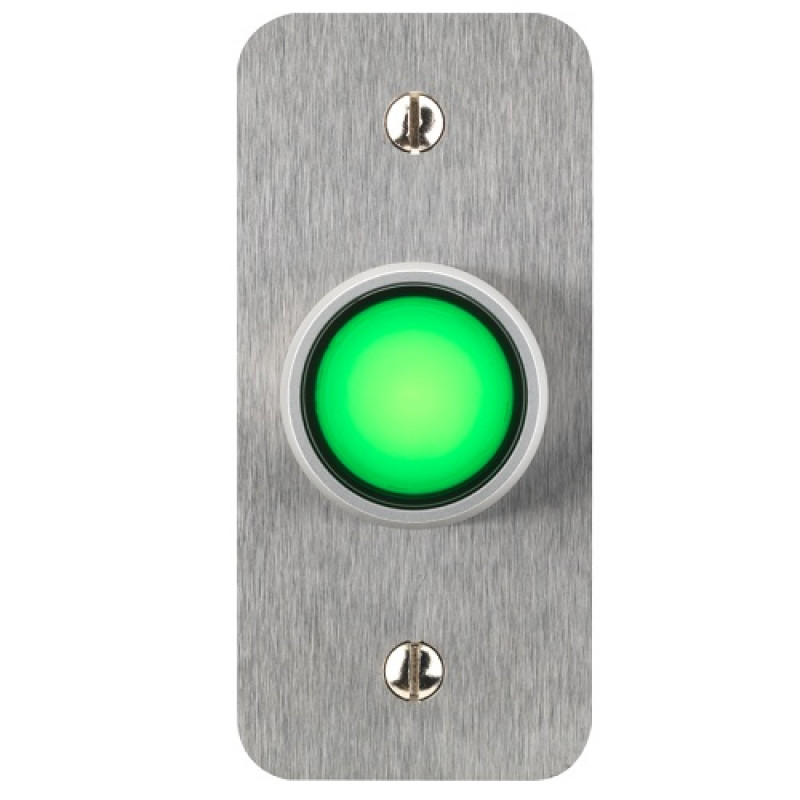

3E0650-1NS, Illuminated Button Momentary Narrow Stile SSS IP67
- Brand:3E Security
- Product Code:3E0650-1NS
- Availability:Please Call or Email to Checkout
3E0650-1NS, Illuminated Button Momentary Narrow Stile SSS IP67
Key Features:
- IP67 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- 12Vdc Independent illumination
- -25°C to +55°C
Techinical Specifications:
ELECTRICAL:
- Insulation Resistance: > 7MΩ between the open contacts at 500 VDC, as per EN IEC 61058-1-15
- Contact Resistance (initial) Life: New state ≤ 50mΩ as per DIN IEC 60512-2-4, 2 million Cycles of operation
- Electrical strength: 3000VAC, 50Hz, 1min. between all terminals and earth, as per EN IEC 61058-1-15
MECHANICAL:
- Operating Force: 6N
- Contact Bounce: ≤ 5ms
- Travel: 3mm
ENVIRONMENTAL:
- Ingress Protection: IP 67
- Contact Material: Gold plated silver
- Housing: Diallylphthalate DAP, Polyamide 66, Polysulfone, heat-resistant and self-extinguishing
- Actuator Material: Polyamide
- Shock: max. 150m/s², pulse width 11ms, 3-axis, as per EN, IEC 60068-2-27
MATERIAL:
- Plate material: Grade 304 DP1 stainless steel (2mm)
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
