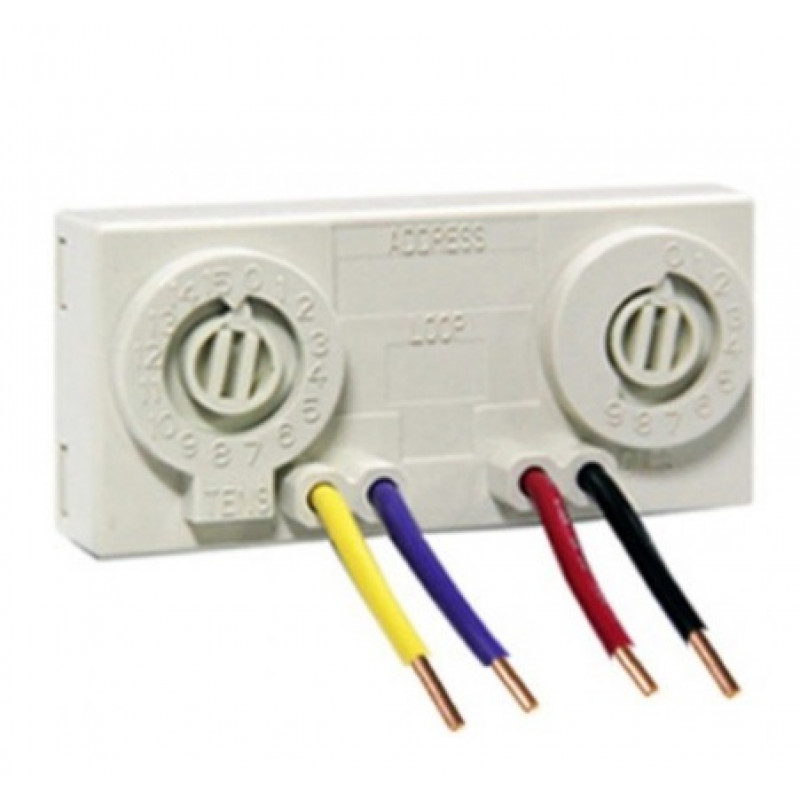

Honeywell, MI-MM3E-S2, Addressable Mini Input Module
- Brand:Honeywell
- Product Code:MI-MM3E-S2
- Availability:Please Call or Email Us to Check Availability
Honeywell, MI-MM3E-S2, Addressable Mini Input Module
The MI-MM3E-S2 is a Addressable "Mini" Input Module. It will interface with contact devices such as security contacts and waterflow switches, suitable for mounting inside monitored equipment.
Specifications:
- Communications Loop :
- Nominal Operating Voltage : 15-32 VDC
- Average Operating Current : 400 µA, 1 comm. every 5 seconds,47K EOL
- Maximum Alarm Current : 600 µA
- Monitoring Line :
- EOL Resistance: 47K Ohms
- Maximum Wiring Resistance: 1.5K Ohms
- Maximum Voltage to EOL: 11 Volts
- Maximum Short Circuit Current: 217 µA
- General :
- Temperature Range: 0°C to 49°C
- Humidity: 10% to 93% Non-condensing
- Dimensions: 33mm H x 71mm W x 15mm D
- Wire Length: 150mm minimum.
