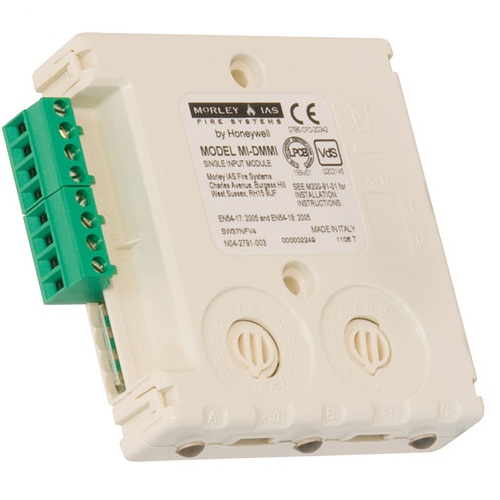

Honeywell (MI-DMMI) Single Input Monitor Module

Honeywell (MI-DMMI) Single Input Monitor Module

Requires M200E-SMB for surface mounting or M200E-DIN for mounting to DIN rails.

Addressable monitor module for MorleyIAS analog system, with a supervised input for the signaling of external equipment states that provide a normally open contact, identifying itself in the control panel with a personalized message (closed door, flow detector ...). It incorporates short circuit insulator. Easy addressing by means of two rotary switches placed on both the front of the module and on the side (accessible and visible on DIN rail mounting). It has a tricolor LED (green: flashes when the equipment is asked, red: fixed in alarm, yellow: flashes due to a fault in the input circuit). Connected by removable terminals (up to 2.5mm2 of section).

Multiple mounting possibilities: On the surface using M200SMB or SMB6-V0 enclosure, on DIN rail using M200E-DIN adapter or on panel using M200PMB support.

Specifications:

• Dimensions in mm: 94 width 93 high 23 depth
• Line supervision: resistive 47K Ohms
• Approved according to: EN54-18 and EN54-17
