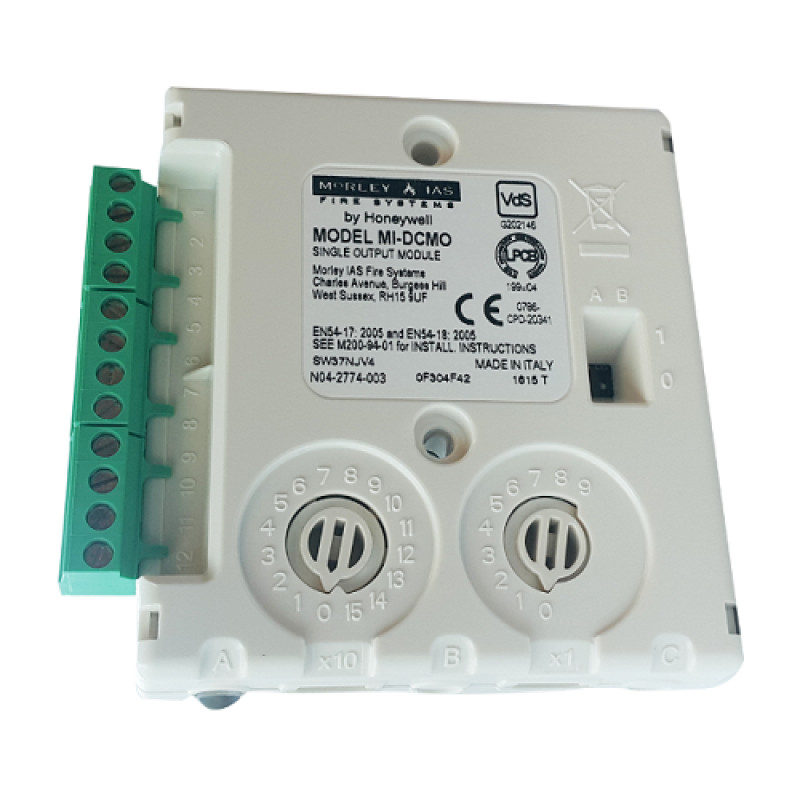

Honeywell (MI-DCMO) Single Output Monitor Module
- Brand:Honeywell
- Product Code:MI-DCMO
- Availability:Please Call or Email Us to Check Availability
Honeywell (MI-DCMO) Single Output Monitor Module
The MI-DCMO cpntrol module provides a monitored single output circuit for use with polarised loads (sounder circuit) which requires a suitable power source (7Vdc - 30 Vdc) for the connected load. Alternatively the same device may be placed in to an unsupervised mode which can then be used to control any switched load up to 2A @ 30 Vdc.
Specifications:
- Dimensions (W x H x D): 94 mm x 93 mm x 23 mm
- Operating voltage: 15 to 30VDC peak
- Operating temperature: -20 deg to +60 deg
- Non-condensing reltive humidity: 0% to 95%
- Current consumption: -310 μA @ 24 VDC (without comm.) / -510 μA @ 24 VDC (one comm. every 5 sec. with LED blink enabled).
