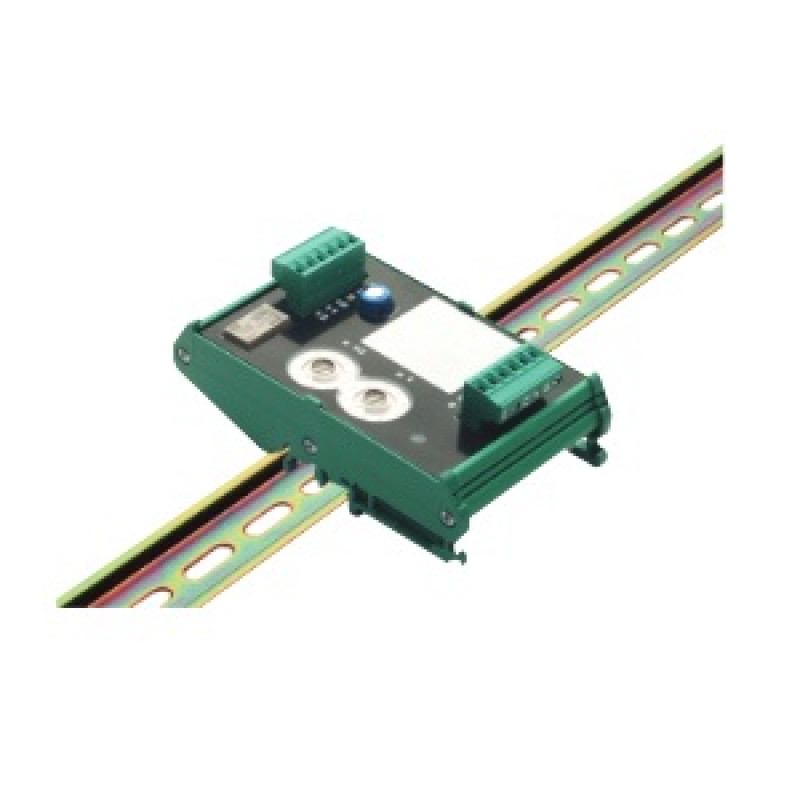

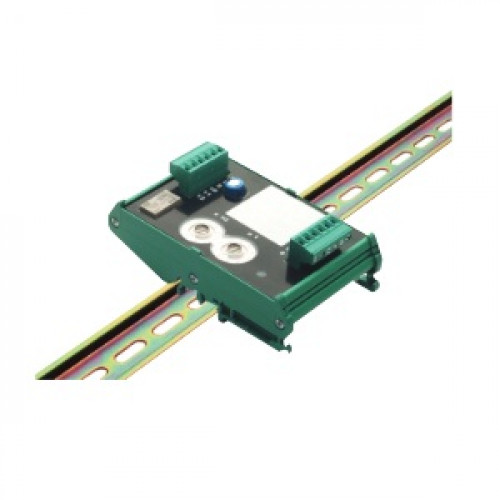

Honeywell (MI-D240CMO-DIN) Single 240VAC/5A Output Relay Module W/ DIN
- Brand:Honeywell
- Product Code:MI-D240CMO-DIN
- Availability:Please Call or Email Us to Check Availability
Honeywell (MI-D240CMO-DIN) Single 240VAC/5A Output Relay Module W/ DIN
Output Control Module, 240 Vac relay contact rating in DIN mounting enclosure. The MI-D240CMP-DIN provides two (1 x N.O. 1 x N.C.) 250Vac (nominal 230Vac), 5Amp contact outputs. Complete with DIN mounting enclosure, direct decade address entry and tri-colour LED's complete with built-in isolator.
Specifications:
- Dimensions (W x H x D): 94 mm x 93 mm x 23 mm
- Operating voltage: 15 to 30VDC peak
- Operating temperature: -20pC to +60pC
- Non-condensing relative humidity: 0% to 95%
- Current consumption: -275 μA @ 24 VDC (without comm.) / -445 μA @ 24 VDC (one comm. every 5 sec. with LED blink enabled).
