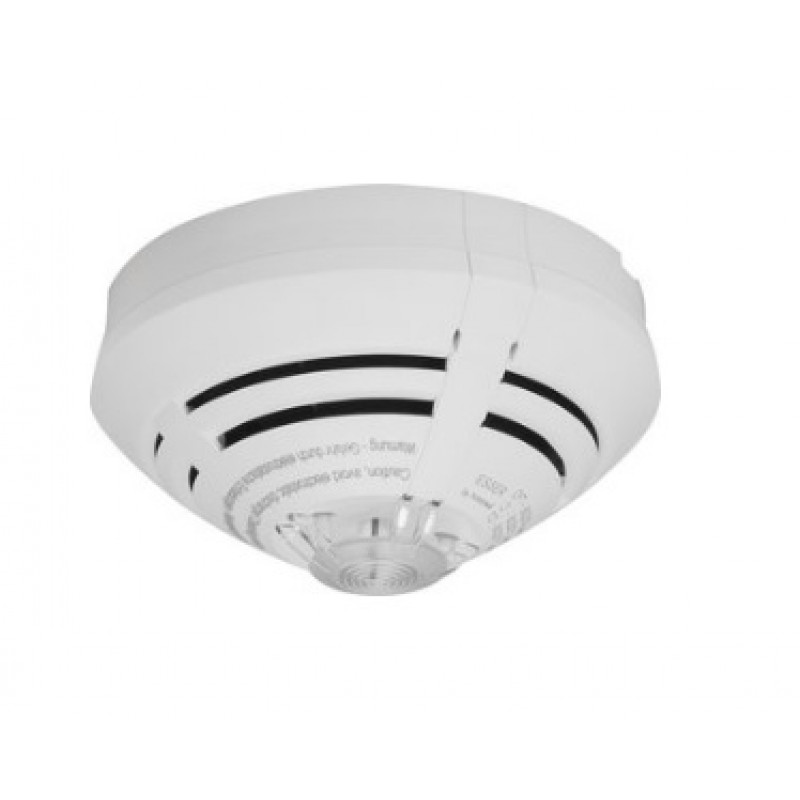

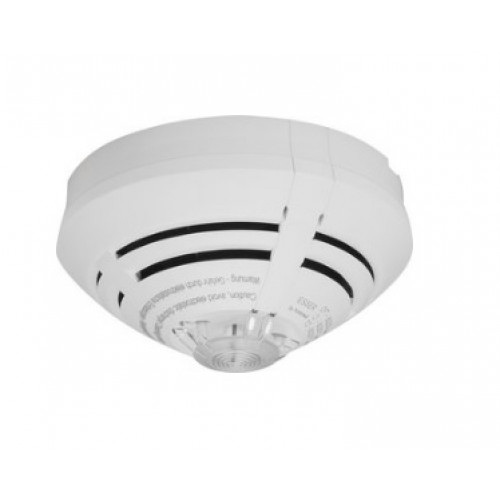

Honeywell Gent (803371.EX) Intrinsically Safe Optical Smoke Detector

Honeywell Gent (803371.EX) Intrinsically Safe Optical Smoke Detector

Scattered-light smoke detector for reliable early recognition of fires. Responds well to slow-burning, smouldering fires. Intelligent fire detector with decentralized intelligence, automatic function self-test, emergency mode, storage of alarm and operating data, alarm display. Soft addressing and separate operational display is only possible when operating an esserbus / esserbus-PLus IQ8Quad detector without loop isolator, especially for usage in explosion zones. Operation with individual addressing at Ex barrier Part No. 804744 and as standard detector at Ex barrier Part No. 764744.

Specifications:

• Data according to ATEX:
  • Max. Input Voltage (Ui) : 21 V DC.
  • Max. Input current (Ii) : 252 mA .
  • Max. Output current (Io) : 10 mA .
  • Ambient temperature (Ta) : -20 °C - 70 °C.
  • EC-type examination certificate : TÜV 09 ATEX 554910.
  • Ex-category : II 2G (with Ex barrier Part No. 804744 or 764744).
• Common technical data:
  • Operating voltage : 8 - 42 V DC.
  • Quiescent current @ 19 V DC 50 μA.
  • Alarm current @ 9 V DC 18 mA .
  • Area to be monitored : 110 m².
  • Height to be monitored : 12 m.
  • Application temperature : -20 °C - 70 °C.
  • Storage temperature : -25 °C - 75 °C.
  • Air humidity : < 95 %.
  • Type of protection IP 40 with base, up to IP 43 incl. base + option .
  • Material : ABS .
  • Color : white, similar to RAL 9010 W.
  • Dimensions : Ø: 117 mm H: 49 mm (62 mm incl. base).
