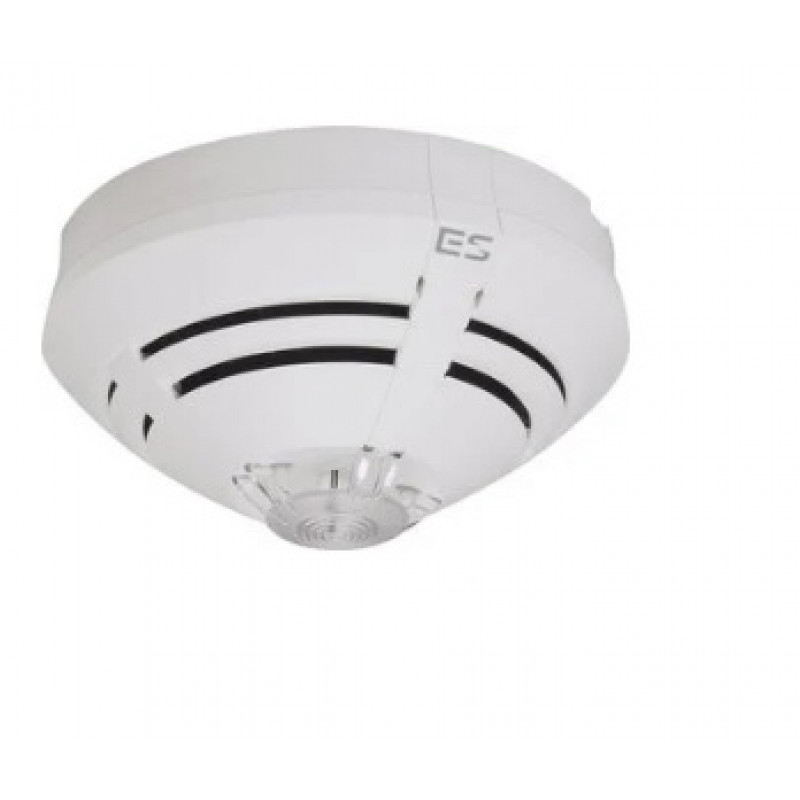

Honeywell Gent (800371) Optical Smoke Detector

Honeywell Gent (800371) Optical Smoke Detector

Scattered-light smoke detector for reliable early detection of fires. Fire detector with decentralized intelligence, automatic function self-test, automatic environmental adaptation, alarm and operating data storage and alarm display. A remote indicator can also be connected.

Key Features:

• System benefits:
  • Optimally matched to the ES Line system
  •  With multisensor detectors for the detection of all fires, even under the most difficult operating conditions
  • Up to 30 detectors per detection group
• Reliable detection:
  • Uniform response sensitivity of the detector for all different types of fire for the multisensor detectors
  • Large distance between signal and interference magnitudes due to special sensor and electronics design for suppressing electromagnetic influences
  • Automatic adaptation to varying environmental influences
  • Electronic compensation also called drift-compensation of long-term influences of contamination or aging
• Reliable false alarm suppression:
  • High reliability against false alarms by temporal evaluation of different sensor criteria, with built-in insect screen and sealed against rear air flow entry
  • Exclusion of signal forms not typical of fires through special filter algorithms
  • Automatic self-monitoring of the detector electronics
  • Automatic self-monitoring of sensors for function and condition
• Maintenance:
  • Designation of the heat detector by a black ring on the light pipe
  • Hours of operation, alarm and fault counter in each detector
  • Operation data retrieval of all detectors of a group with standard service PC and field bus interface
  • Detector LED for alarm display and as an identification display in the service (for maintenance with 8000 tools)
• Wide range of accessories:
  • Standard socket and relay base
  • Socket adapter for ceiling installation
  • Dust caps optional for fire detectors and detector base
  • Kit for suspended mounting

Specifications:

• Common technical data:
• Operating voltage : 8 - 42 V DC
• Quiescent current @ 9 V DC : 30 μA
• Alarm current @ 9 V DC : 9 mA
• Area to be monitored : 110 m²
• Height to be monitored : 12 m
• Air velocity : 0 m/s - 25.4 m/s
• Application temperature : -20 °C - 72 °C
• Storage temperature : -25 °C - 75 °C
• Air humidity : < 95 %
• Type of protection IP 40 with base, up to IP 43 with base and option
• Color : white, similar to RAL
• Dimensions : Ø: 117 mm H: 49 mm (62 mm incl. detector base).

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
