HID (6008BGB00) ProxPoint Plus Proximity Reader, Grey, Clock and Data

HID (6008BGB00) ProxPoint Plus Proximity Reader, Grey, Clock and Data Output

• Small sized reader features a beeper and multicolor LED which can be host and/or locally controlled
• Can mount directly on metal with no change in read range performance
• Power requirements: 5-16 VDC
• Dimensions: 3.14 ̋ x 1.70 ̋ x 0.66 ̋ (7.96 cm x 4.3 cm x 1.68 cm)
• Read Range: up to 3.0 ̋ (7.5 cm)*

HID’s ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.

• Features a beeper and multicolor LED which can be host-and/or locally controlled.
• Enables various beeper and LED configurations, depending on individual site requirements.
• Can read HID cards with formats up to 85 bits.
• Designed for mounting directly onto metal with no change in read range performance.
• Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
• Compatible with all standard access control systems.

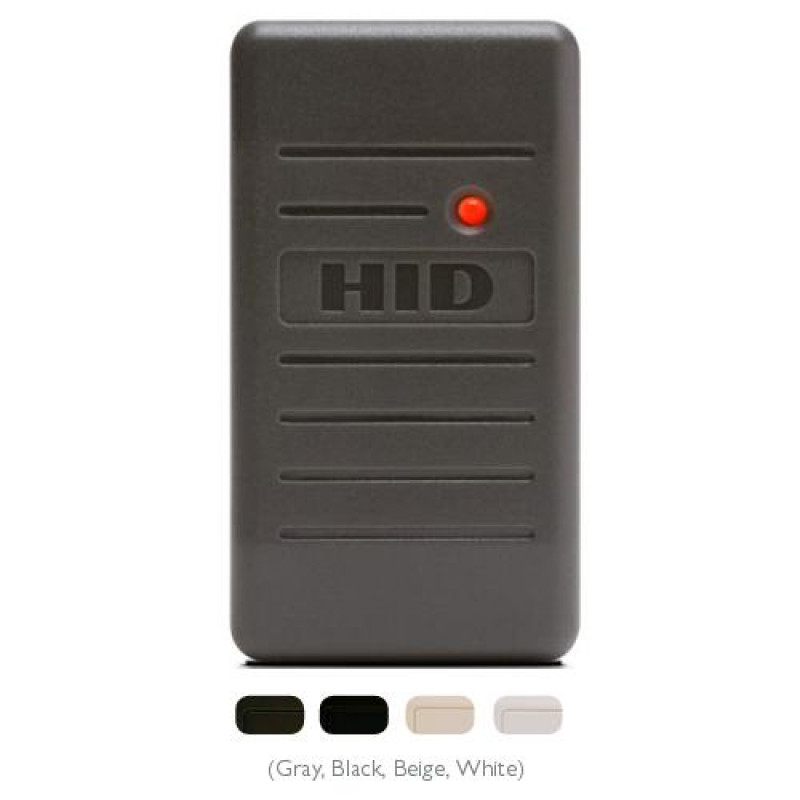

• Aesthetic design available in two cover designs and in four colors to match any decor.
• Includes multilingual installation manual.

For more details, please refer with our attached datasheet.
