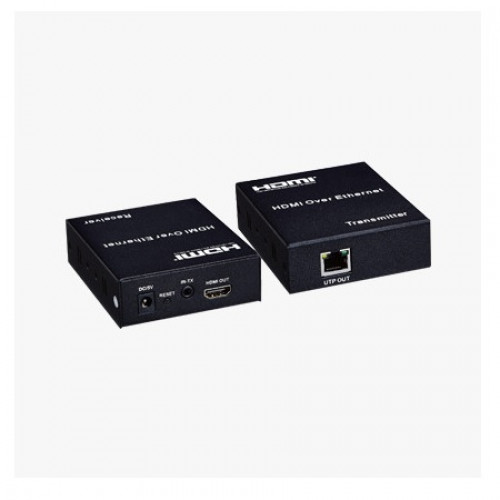

HAY-EXT120IRHDMI, 120M Video Extender Over Single CAT5e OR CAT6 Cable

HAY-EXT120IRHDMI, 120M Video Extender Over Single CAT5e OR CAT6 Cable

HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.

Key Features:

• Following TCP/IP standard.
• Support HDMI1.3 protocol.
• HDCP1.1 & 1.2 protocol compliant
• Support point-to-point mode, one point-to-many mode and cascade connection mode.
• Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices

Specifications:

• HDTV Resolutions: 480p,576p,720p,1080p
• Audio: Sample rate:32kHz,44.1kHz,48kHz
• IR remote control: 38kHz;NEC
• HDMI: HDMI 1.3
• HDCP: HDCP 1.2
• Power adapter: Input：100V-240V(50-60Hz) Output:5V/1A
• Power consumption: HDMI Sender:3W HDMI receiver:3W
• Size(L-W-H): 92x79x20mm
• Operating Temperature/Humidity: 0℃-70℃/10%-80%RH(no condensation)
• Storage Temperature/Humidity: -10℃-80℃/5%-90%RH(no condensation)
