HAY-MPR12, 12vDC Multi Purpose Relay Switching Upto 2A@ 30VDC
- Brand:Haydon
- Product Code:HAY-MPR12
- Availability:Please Call or Email Us to Check Availability
HAY-MPR12, 12vDC Multi Purpose Relay Switching Upto 2A@ 30VDC

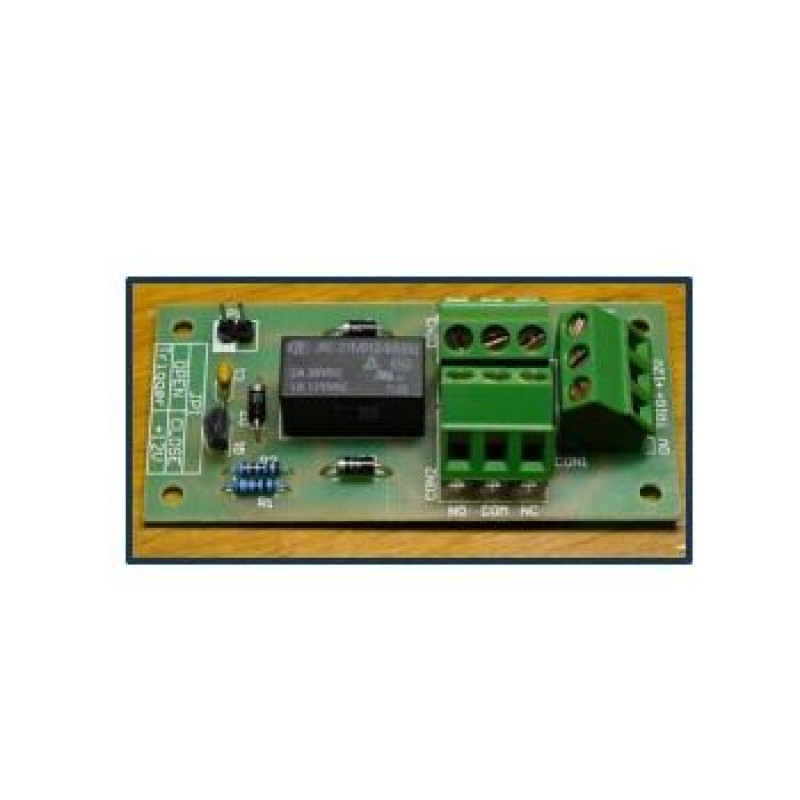

This unit is designed to allow the switching of up to two independent loads (CON2 &CON3) that powered by AC or DC power supply. The max switched load is 2A @ 30VDC or 1A @ 125VAC per pole. This switching can be controlled by 12VDC or low current trigger signal via CON1.The use of a double throw relay allows this unit to operate in either NO or NC configurations. For use with Intruder, Access, Entry, Fire and CCTV Systems that requires additional simple switching.
12V RELAY FOR SWITCHING AC & DC CIRCUITS
