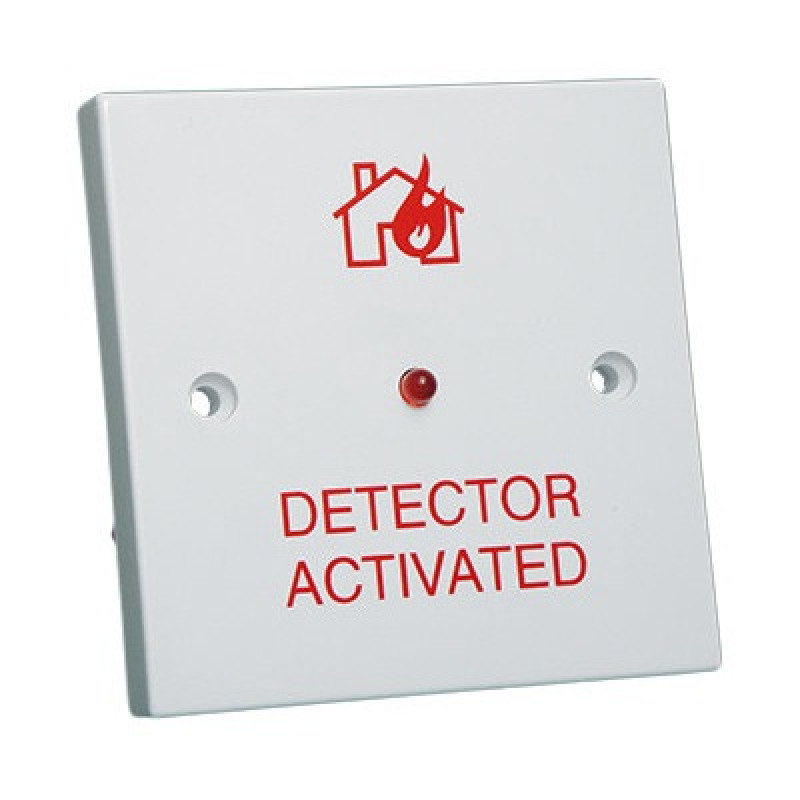

This single gang Remote LED Indicator provides a bright LED indication of a detector operation when connected to the remote LED output of most types of smoke and heat detectors.
Simple to install on industry standard 60mm screw fixing centres, this LED indicator includes options for connecting to a conventional system via an in built resistor or directly to an addressable detector bypassing the resistor.
Key Features:
- Quick installation
- Operates with most types of detector
- Low power consumption
- Standard fixings
Specifications:
- Material: White ABS
- Body Colour: White
- Conventional Connection: 1K Ohm + LED
- Addressable Connection: LED
- Fixing Method: 2 x M3.5 x 20mm screws
- Application Type: Indoor use
- Wiring: Terminals up to 1.5mm2
Dimensions
- Width: 86mm
- Height: 86mm
- Depth: 10mm (not including back box)
- Fixing Centres: 60mm
