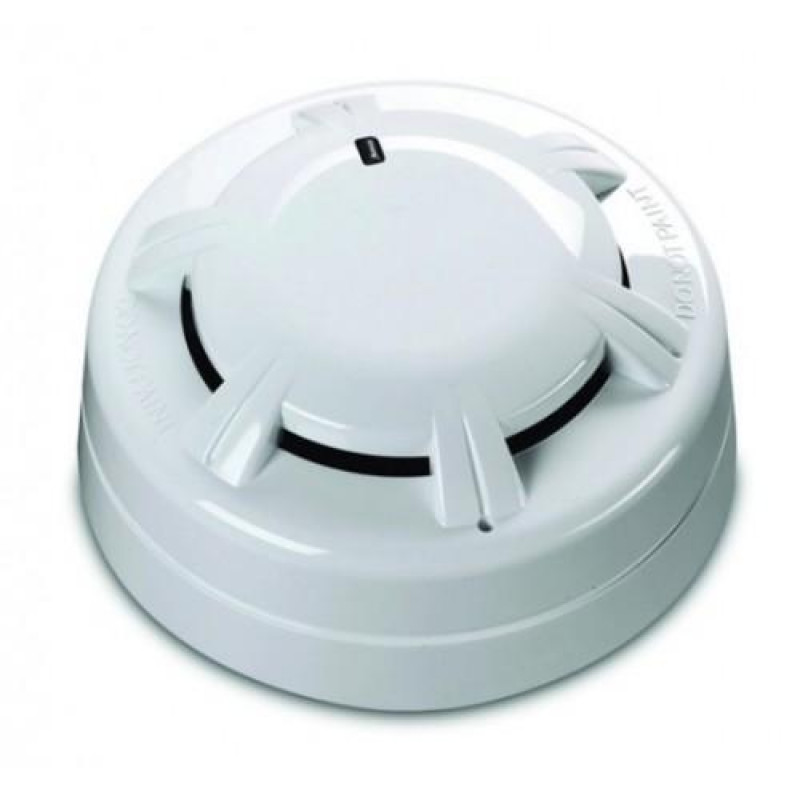

Orbis, ORB-OP-12001, Optical Smoke Detector

Orbis, ORB-OP-12001, Optical Smoke Detector

Orbis is a range of conventional detectors which has been developed with sophisticated technology previously only found in intelligent detectors. Orbis is a range with modern styling and incorporates a mounting base which saves installation time.

Orbis is a modern stylish detector packed with practical features that make installation, commissioning and maintenance easy and efficient and new sensing and operating technologies that improve reliability and detection.  The Orbis range comprises an optical smoke detector, multisensor, heat detectors and a choice of bases.

Orbis Optical Smoke Detector

The Orbis optical smoke detector’s sensing technology makes it significantly different in design from existing optical detectors.

Although the Orbis optical detector operates on the well-established light scatter principle, it has a new optical system that reduces false alarms while still meeting international detection standards. The stability of  the detector is further increased by the incorporation of drift compensation and the use of internal software to decide when the detector should change to the alarm state. This greatly reduces the likelihood of a detector producing an alarm as a result of smoke from a non-fire source.

Installation

Orbis has been designed to make installation, commissioning and maintenance fast and simple. Orbis detectors have StartUp™, a phase that uses a flashing red LED to confirm that the devices are wired in the correct polarity. Normal operation is resumed automatically after four minutes.

A one second reset switches from normal operation to FasTest®, allowing functional testing with smoke or heat to be done in just four seconds.

Key Features:

• Responds well to slow-burning, smouldering fires
• Good performance in both black and white smoke
• Transient rejection algorithms reduce false alarms
• Automatic drift compensation with DirtAlert, a yellow flashing LED, to easily identify dirty detectors
• Red flashing LED at StartUp confirms that the device is operating. SensAlert, yellow flashing LED, indicates faulty operation
• FasTest takes just 4 seconds to test and confirm detectors are functioning correctly
• DustDefy system prevents dust ingress while maintaining airflow

For more details, please refer with our attached datasheet.
