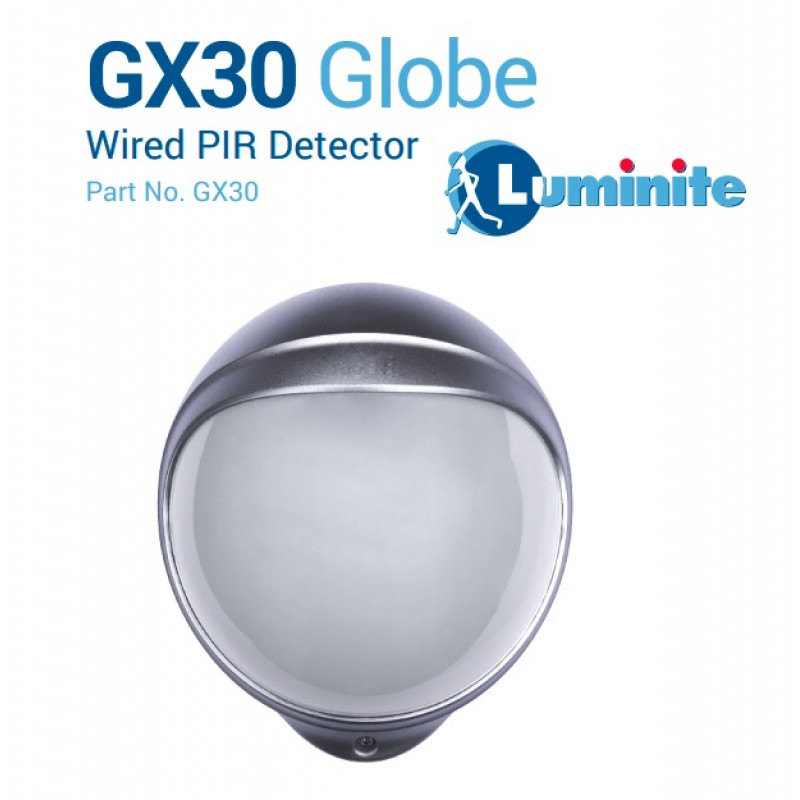

GX30, NEW 12v Globe covert PIR Detector 30m
- Brand:Luminite
- Product Code:GX30
- Availability:Please Call or Email Us to Check Availability
GX30, NEW 12v Globe covert PIR Detector 30m
The GX30 Globe provides covert PIR detection and incorporates the latest technologies with excellent immunity to nuisance alarms.
- Stylish covert detector design
- Pet immune lens array
- Sliding internal curtains allow for a customisable field of view
- Rear and front tampers give an added layer of security
- Adjustable pan and tilt feature provides discreet coverage from a variety of angles
- 30-metre range
- Two independent relays contacts, one of which is programmable
- Robust IP55 weather-rated housing
Advanced Covert Detection
This low voltage PIR detector is powered from 12 volts DC and can be used for a variety of purposes from alarm and CCTV motion detection to lighting control.
There are two independent volt free relays; one is dedicated for CCTV and alarm signalling whilst the other can be configured for other purposes that require a longer time and/or different polarity.
A built-in light sensor may be gated to the second relay and the contact time can be varied making it ideal for lighting control.
Front and rear tamper is provided by way of volt free normally closed contacts.
Versatile Coverage
The detection area is 30m x 70° and the internal optical assembly can be adjusted from side to side as well as down so that the product does not have to be mounted facing in the direction of the area to be covered.
Additionally, this product can be set up for pet immunity or curtain coverage.
Walk testing is by way of a bright LED.
The GX30 Globe has an IP weather rating of IP55.
Technical Specifications:
| Supply | 12v DC |
| Power Consumption | 17m/a |
| Detection Type | Passive Infrared Dual Element Pyro |
| Detection Range | Programmable between 10 and 30 metres |
| Mounting Height | Variable up to 6 metres - optimum height 3 metres |
| Coverage | 10° - 70° |
| Contact A | Volt free N/O or N/C - 1 second |
| Contact B | Volt free N/O or N/C - 1 second to 5 minutes |
| Light Sensor | Applied to Contact B |
| Adjustment | 180° pan + 90° tilt |
| Pulse Count | 1 - 4 |
| Walk-test Facility | High intensity LED |
| Anti-Tamper | Front and rear |
| Temperature Range | -10°C to +60°C |
| Weather Rating | IP55 |
| Enclosure | Durable ABS UV stabilised housing |
| Weight | 300 grams |
| Dimensions | 141mm x 165.6mm x 109mm |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
