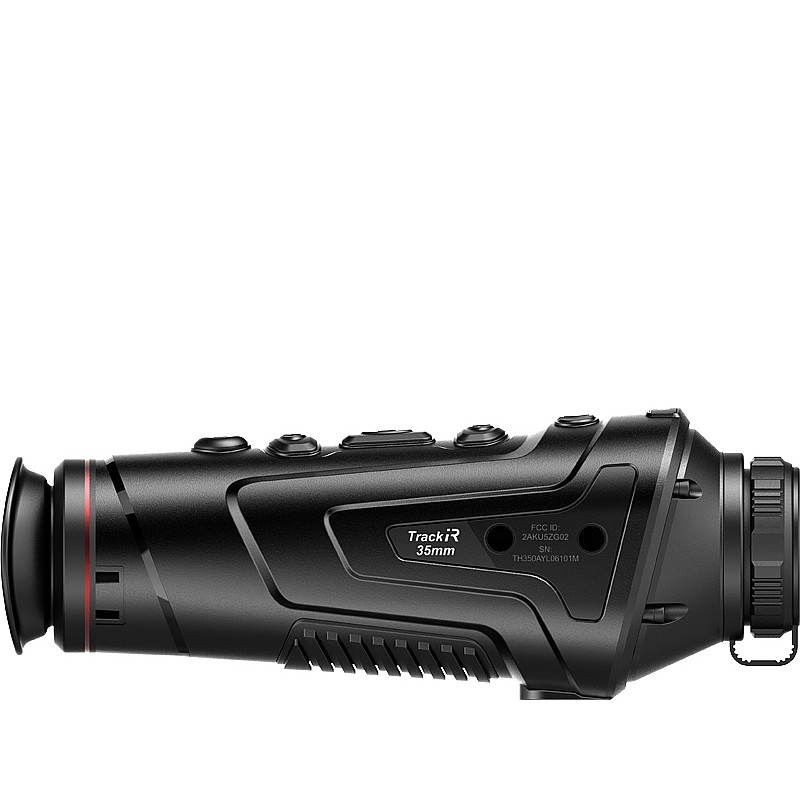

GUI-TRACKIR-35, TrackIR 35 THERMAL IMAGERS

GUI-TRACKIR-35, TrackIR 35 THERMAL IMAGERS

The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 35 has a native magnification of 2.3x, with a digital zoom of 4x, resulting in a 9.2x total magnification which alongside the units long distance detection (Humans: 1000m, Vehicles: 2400m) makes this unit perfect as a thermal spotter.

Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as a mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.

The unit has an internal Li-Ion battery pack with an average operating time of 5 hours and can be recharged via USB Cable.

The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed.

Specifications

• Thermal Sensor: 400x300 17µm <50mK NETD
• Spectral Range: 8µm-14µm
• Detection Range: 1000m (Human: 1.8mx0.5m), 2400m (Vehicle: 2.3mx2.3m)
• Magnification: 2.3x-9.2x
• Digital Zoom: 1x-4x (Smooth)
• Focus: 35mm/F1.2 (Manual)
• Field of View: 11.1°x8.3°
• Display: 1280x960 (0.4") LCOS Colour
• Dioptre: -4 to +2
• Frame Rate: 50Hz
• Colour Palettes: White hot, black hot, iron red, blue hot, red hot
• Scene Modes: Enhanced, Highlight, Natural
• Picture-in-Picture Mode: Yes
• Power: Internal Li-Ion (2x18650 6000mAh)
• Average Operating Time: 5h
• Ports: Micro-USB-C, Video Out
• Internal Memory: 16GB
• Operating Temperature: -10℃ to 50℃
• Protection: IP66
• Drop Rating: 1m
• Weight: 485g
• Dimensions: 192x65x71mm

Additional Functions

• Photo & Video Capture
• Hotspot Tracking
• Stadiametric Rangefinder
• Wi-Fi/ App
• Compensation Modes: Auto comp./ shutter comp./ scene comp.
• Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
• Image Enhancement
• Brightness & contrast
• Auto power-off
• Auto sleep
• Super power-save mode
• Indicator off

Includes

• Thermal Imager
• USB Cable
• Micro HDMI Cable
• Lens Cover
• Wrist Strap
• Lining Package
• Quick Start Guide
