WS4K1, WS4 Web Access System 1 Door Mifare Proximity Entry Kit

WS4K1, WS4 Web Access System 1 Door Mifare Proximity Entry Kit

Manage your Access Control in a Web Browser or mobile App, no special software required

1 Door Mifare Proximity Access Control kit

Introducing the latest product in the WS4 web access range, the WS4K1 access control kit. It is an entry level 1 door Mifare proximity access control kit which is expandable to multiple doors with the inclusion of additional kits.

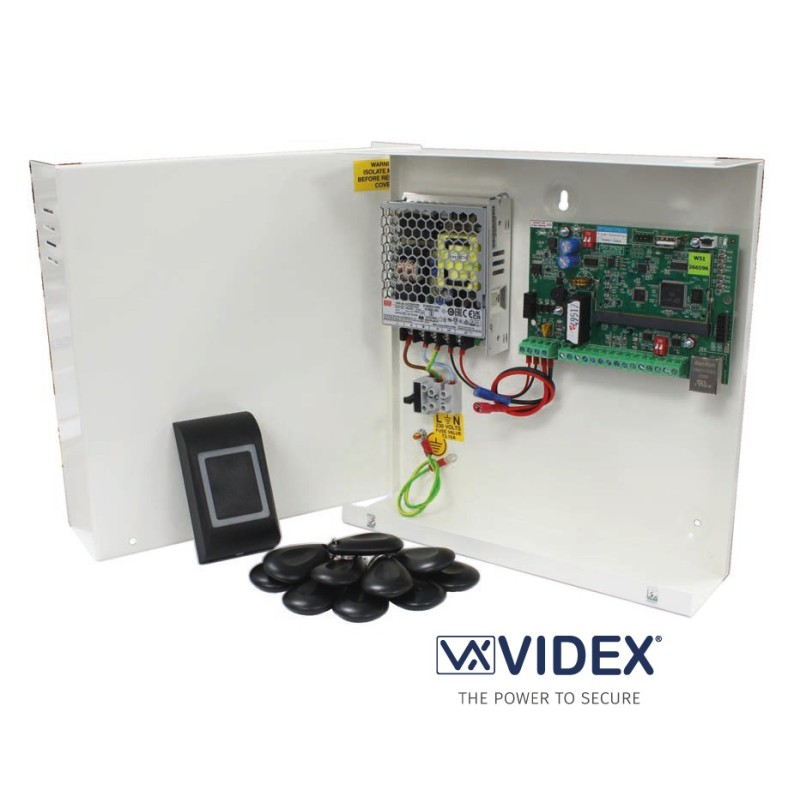

The kit includes the following:

• 1x WS4CU1S - 1 door controller with PSU.
• 1x MTPXBK-MO - Mifare proximity reader.
• 10x PBXBK-1E-MS50 - Black Mifare proximity key fobs.

WS4CU1S controller: The WS4CU1S comprises of a white powder coated housing which is fitted with a WS4-1D-E 1 door control pcb (inc. battery backup facility) and Ethernet connection. It is also fitted with a 14.2Vdc, 2.4A switched mode PSU.

MTPXBK-MO proximity reader: The MTPXBK-MO is a compact surface mount Mifare proximity reader in a black ABS housing with an RS485 bus connection. It can read Mifare Classic, Ultralight and Desfire key fobs and cards with a read range of up to 6cm.

PBXBK-1E-MS50: The black PBXBK-1E-MS50 key fobs supplied with the kit are Mifare Classic 13.56MHz fobs and have a 1K memory capacity (other colours available)

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.

For more details, please refer with our attached datasheet.
