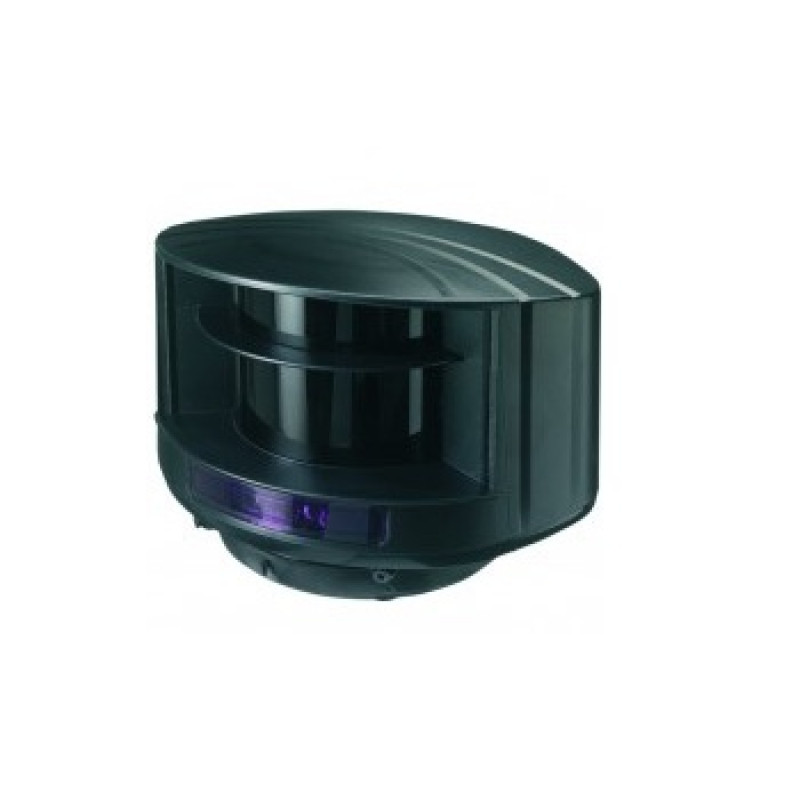

GJD505, D-TECT Laser 5m x 5m - Black
- Brand:GJD
- Product Code:GJD505
- Availability:Please Call or Email Us to Check Availability
GJD505, D-TECT LZR 5 Layer Laser Detector
The D-TECT LZR is a LASER-based security device designed to protect goods and buildings against theft, vandalism and intrusion. This high-precision sensor ensures high levels of detection and security.
Key Features:
- Typical detection range: 5 m x 5 m
- Capacity to detect or ignore objects in mm-range* and with a remission factor down to 2%
- Covert operation: the LED display can be switched off with the remote control
- 4 adjustable sensing curtains to provide alarm & pre-alarm warning
- High immunity to environmental interference using dedicated time of flight software
- Discreet design with optional black or white housing
- IP65, indoor or outdoor applications
Specifications:
| Technology: | LASER scanner, time-of-flight measurement |
| Detection Mode: | Movement and presence |
| Detection range: |
GJD505: 5.0 x 5.0m
|
| Angular resolution: | 0,3516˚ |
| Typ. min. target size: | 21cm @ 3m / 3.5cm @ 5m / 7cm @ 10m / 17.5cm @ 25m (in proportion to object distance) |
| Emission characteristics IR LASER |
Wavelength 905 nm; max. output pulse power 75W; Class 1 |
| Supply voltage: | 10-35V DC @ sensor terminal |
| Power consumption: | < 5 W |
| Response time: | Typ. 20 ms; max. 80 ms |
| Output Max. switching voltage Max. switching current |
2 electronic relays (galvanic isolated – polarity free) 35V DC / 24V AC 80mA (resistive) |
| LED signals: | 1 blue LED: power-on status 1 orange LED: error status 2 bicoloured LED: detection/output status (green LED: no detection. Red LED: detection) The LEDs can be switched off by remote control |
| Dimensions: | 125 mm (D) x 93 mm (W) x 70 mm (H) (mounting bracket + 14 mm) |
| Material: | PC/ASA (colour: black or white) |
| Rotation angles on bracket: | -5˚ to +5˚ (lockable |
| Tilt angles on bracket: | 3˚ to +3˚ |
| Protection degree: | IP65 (avoid direct exposure to high pressure cleaning) |
| Temperature range: | -30˚C to +60˚C if powered / -10˚C to +60˚C unpowered |
| Humidity: | 0-95% non-condensing |
| Vibrations: | < 2 G |
| Norm conformity: | 2006/95/EC: LVD; 2002/95/EC. RoHS; 2004/108/EC: EMC; EN 60529:2001, IEC 60825-1:2007 Laser Class 1 & 3R; EN 61000-6-2:2005 EMC – Industrial level; EN 61000-6-3:3006 EMC – Commercial level |
For more details, please refer with our attached datasheet.
