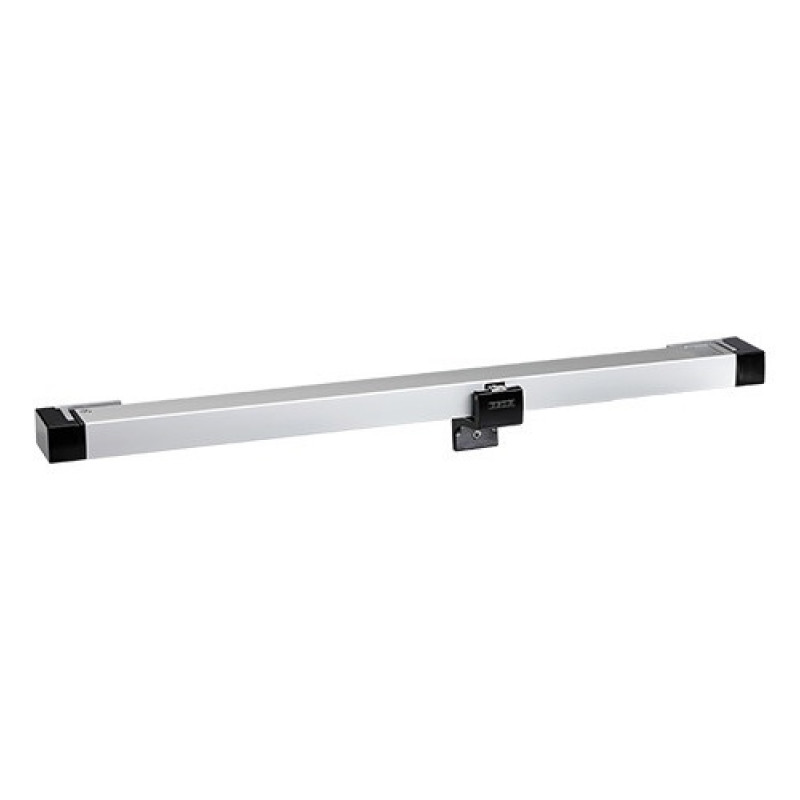

Geze (GZ147080) Powerchain 24v DC/600mm /1.5Amp/EV1 - Silver

Geze (GZ147080) Powerchain 24v DC/600mm /1.5Amp/EV1 - Silver

GEZE Powerchain is designed for when great strength and very big opening widths are required and, especially with respect to heat and smoke extraction, it enables fast opening speeds even for very heavy windows.

Key Features:

• Available in stroke length versions 600 mm, 800 mm and 1,200 mm; continuously adjustable drive stroke and individual speeds for the ventilation and heat and smoke extraction mode
• Can be used for natural ventilation (230 V using a mains adaptor), for heat and smoke extraction (24 V) and in natural heat and smoke extraction systems in accordance with EN 12101-2
• DIP switch to adjust the control mode: the same drive can be used in different modes (e.g. solo and synchronic)
• Intelligent electronics: continuously adjustable drive stroke and individual speeds for the ventilation and RWA modes
• Integrated synchronised module: true synchronisation of up to 3 drives with no external control device

Type of window: Bottom hung, Top hung, Side hung, Roof light

Opening width/stroke (mm): 600

Tension (N): 600

Pressure (N): 600

Space of frame (mm): Frame construction inwards: 50 outwards: 51

Construction possibility: Wing or Frame construction

For more details, please refer with our attached datasheet.
