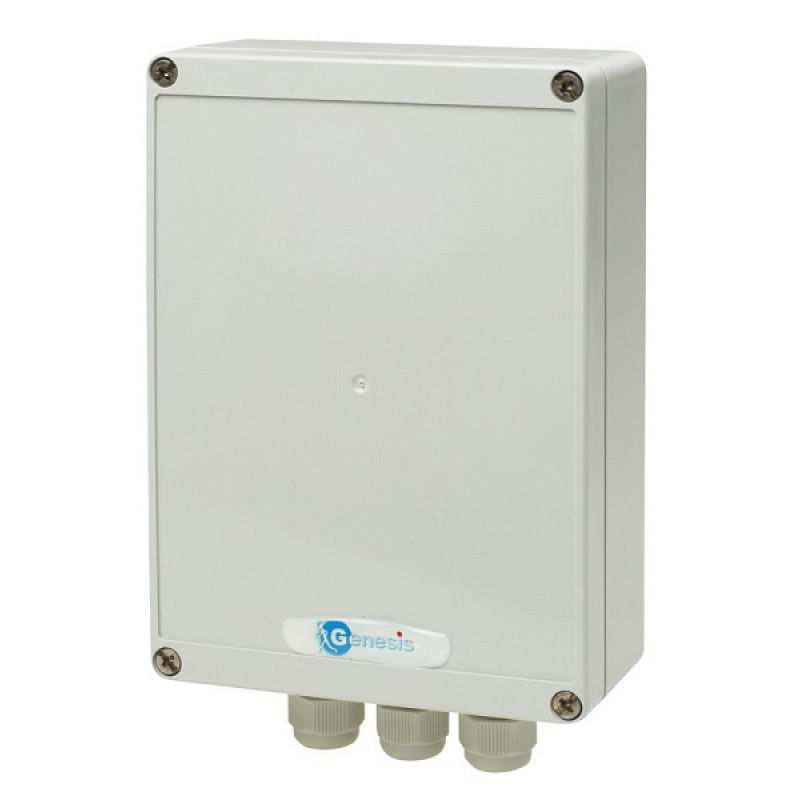

Genesis (LGMRU4x4v2) Masthead receiver with relays for dome cameras only, 4 alarm/4 tamper relays, or 8 alarm relays
- Brand:Luminite
- Product Code:LGMRU4x4v2
- Availability:Please Call or Email Us to Check Availability
Genesis (LGMRU4x4v2) Masthead receiver with relays for dome cameras only, 4 alarm/4 tamper relays, or 8 alarm relays
This alternative to the LGMT434 Masthead Receiver but has the addition of relay outputs which can be connected directly to the alarm pre-sets of a PTZ camera.
The unit provides either 4 alarm outputs with corresponding tamper outputs or eight alarm outputs without tampers. DIL switches set the different modes as well as the unit code groups. Expansion units are available to increase the number of alarm outputs. There is no limit to the number of LGMRU4x4 V2 units that can be used on any one system. This unit can transmit information as well as receive it which means it will transmit back to a Walk Test Instrument to show all received information as well as signal strength back at the masthead. In this way the installer knows that the detector is working correctly and also that it is being received by the system. In addition, it can perform as a repeater for systems that require greater transmission operating distances. An optional aerial (AE434) may be used Instead of the supplied aerial for improved reception.
Features and Specifications
| LGMT434 | LGMRU4X4 V2 | |
|---|---|---|
| Emails Alerts and Alarms to up to three addresses | Yes | Yes |
| TCP IP connectivity | Yes | Yes |
| Serial RS232 connectivity | Yes | Yes |
| Plug & Play interface to some popular Alarms, DVR’s & NVR’s | Yes | Yes |
| Up to 1Km reception and reception range | Yes | Yes |
| Pan European UHF band | Yes | Yes |
| Interfaces directly with some popular alarm systems and DVR’s | Yes | Yes |
| Can become a Repeater by a switch change | Yes | Yes |
| Up to seven repeaters can work with one masthead | Yes | Yes |
| Supplied with standard antenna | Yes | Yes |
| Optional high gain antenna for further range (AE434) | Yes | Yes |
| Operating voltage: Requires 12V DC | Yes | Yes |
| Power consumption: Current draw | 58m/a | 86m/a |
| Temperature range: -10°C +60°C | Yes | Yes |
| Enclosure IP66 | Yes | Yes |
| ABS plastic enclosure | Yes | Yes |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
