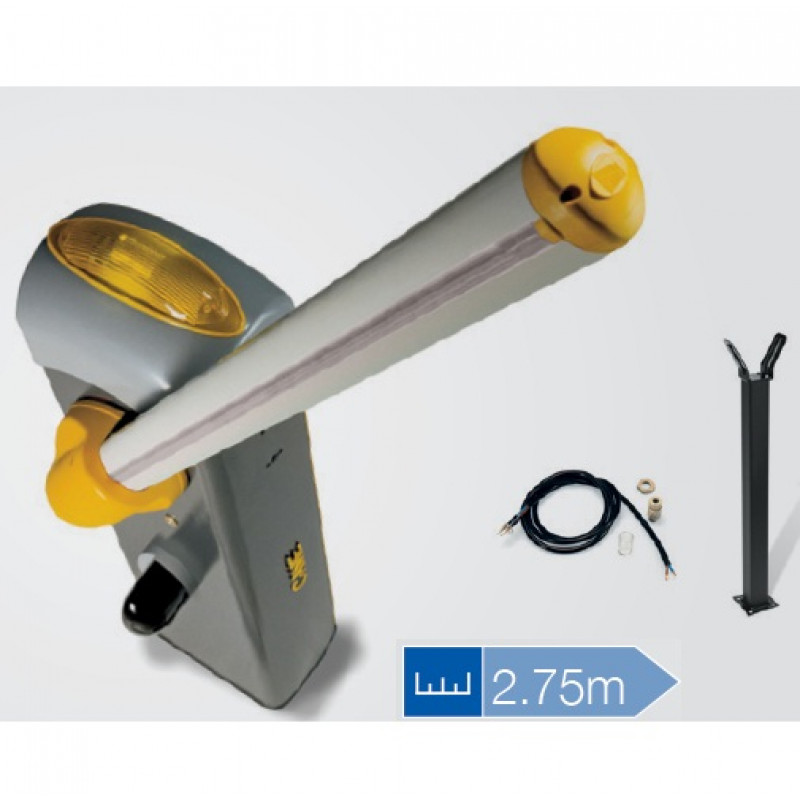

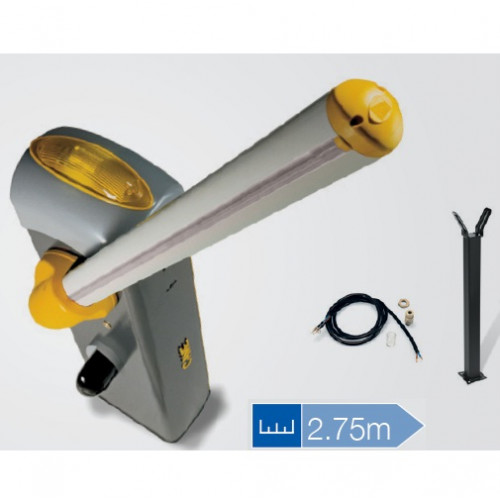

CAME (G324VDX-DX) Deluxe 24V Barrier Kit - 2.75m

CAME (G324VDX-DX) Deluxe 24V Barrier Kit - 2.75m

Delux 24 V D.C. Gard 3 barrier kit for road widths of up to 2.75m.

Kit Consists of:

• 001G3000DX (or SX) 24v barrier unit with built-in control panel - 001ZL30
• 001G03001 3m barrier arm with soft profile
• 001G04060 40mm balancing spring (GREEN)
• 001G02807 Fixed support for bar
• 001G02801 Flashing light
• 001DELTA-SI Pair of safety photocells
• 001G02802 Support bracket for photocells
• 001G03003 Bar fitting and plastic cover
• 001G028401 Lighting strip for bar
• 001G028402 Lighting strip cable

Engineered to control passage openings up to 2.75 m wide, the new Gard 3 barriers are designed for intesive traffic flows thanks to a series of features that make them especially sturdy and reliable. The reinforced steel structure with anti-oxydation treatment and electrostatic powder varnishing, provides long lasting and resistance over time of its aesthetics, while the dedicated control panel and the evolved balancing system are for managing the required continuous operations and passive inertia pheonomenons that are typical of quick movements. The rounded shapes and soft corners confer a modern-design look to the Gard 3 barrier, making it easy to integrate it in any architectural context. The oval or round-shaped barrier arm reduces the sail effect, typically found in windy conditions.

Strengths:

• Modern easily integrated design
• Set up for mounting accessories directly onto the barrier
• LED, high-visibility dome flashing light, integrated into the barrier
• Reinforced steel cabinet treated with anti-oxydation characteristics and varnishing or, made of AISI 304 steel
• Dedicated control panel with encoder-based technology for complete control of the movement and highly sensitive obstacle detection
• Differential spring-loaded balancing system for opening and closing
• Speedy opening and closing movements with independent adjustments

24 Volt Operator, For Top Performance
The 24 V DC operator is the ideal solution to ensure intensive use as typically found when applied to parking lot systems and large traffic flow systems. Also, the low voltage system allows you to connect up to a back up or auxiliary generator unit in the event of power failures.

For more details, please refer with our attached brochure.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
