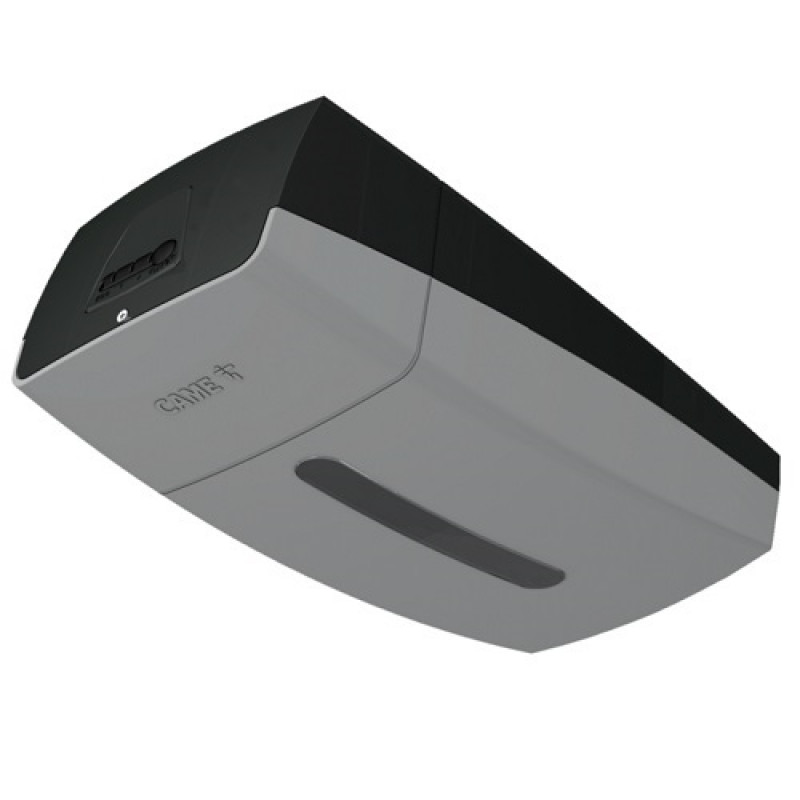

CAME (801MV-0020) VER10DMS 280W Garage Door Motor

CAME (801MV-0020) VER10DMS 280W Garage Door Motor

VER13DMS - Automated operator featuring a control panel with encoder for sectional and overhead garage doors.

Key Features:

• The operator is fastened directly onto the drive guide.
• 24 V DC systems to ensure greater safety and reliability.
• Control board with separate terminals for easier cabling. Save up to 250 different users.
• External keys on display for easier installing and diagnosing.
• Radio programming Rolling code and integrated Key Code (Twin).
• It manages RIO System 2.0 wireless safety accessories via the 806SS-0040 accessory.
• Can manage CAME keypads via the R800 card or connect transponder selectors via the R700 accessory.
• Silent and reliable, belt or chain drive tracks, plus external pull-cord release to fit onto the door’s lock and handle system.
• Tested in compliance with current regulatory standards.
• Set up to run CAME KEY and to connect to the cloud via CAME Connect.
• Can operate in emergency mode during power outages.

Technical Specification:

• Protection rating (IP): 40
• Power supply (V - 50/60 Hz):230 AC
• Power supply to motor (V) 24 DC
• Absorption (A): 10 Max.
• Power (W): 280
• Duty/cycle (%) 50 50
• Cycles/Hour: 30
• Operating temperature (°C): -20 ÷ +55
• Manouvering speed (m/min): 7 MAX

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
