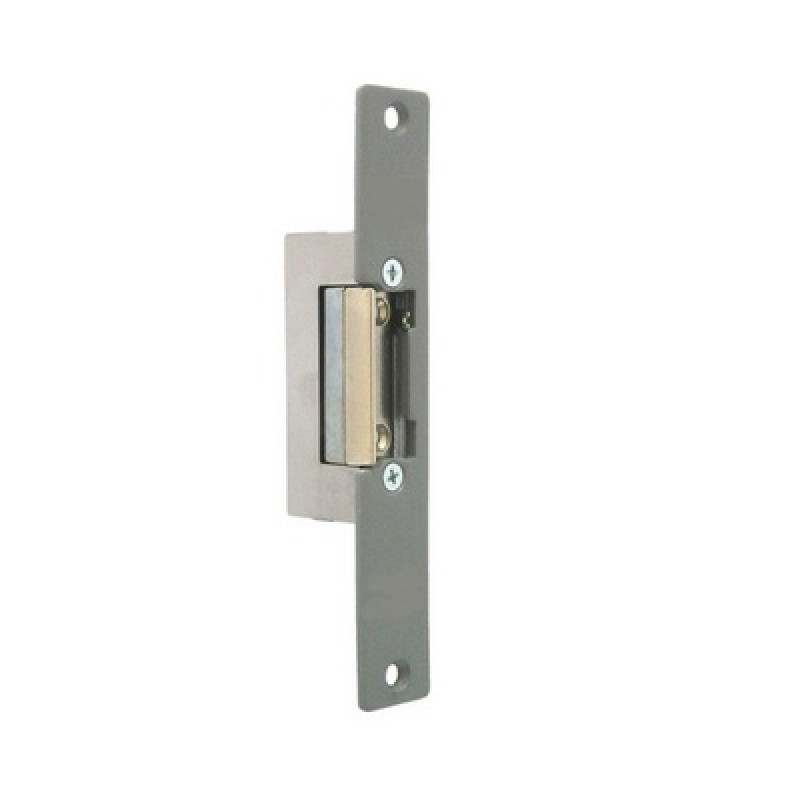

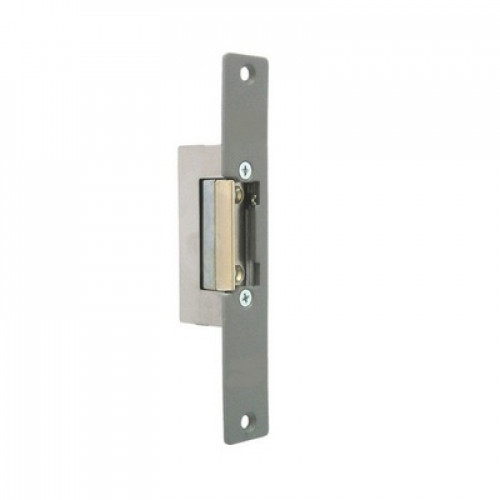

Fermax, 3070, 12Vdc Lock Release (450N-412-S)

Fermax, 3070, 12Vdc Lock Release (450N-412-S)

Flush mounted Door lock.
The electric lock release is a device installed in the door frame to control opening remotely using an electronic device. In an electric door entry system installation it is possible to activate the door lock of the building's entrance to allow the entry of the visit directly from the telephone or monitor just by pressing the doorlock key. The doorlock it made up of an electrical mechanisim and a shield if it is flush mounted.

Serie 450
This door lock release is made up of a UNIVERSAL electric mechanisim model MOD.450, which dimensions are: -75(V)mmx21(H)mmFlush-mounted in wooden or metal frames. Its small size allows to change of hand without having to enlarge the space where the lock release is inserted.

N-412 Normal type 12Vdc (Normal operation and 12 Vdc activation).
The lock release is unblocked for the time that the 12 Vdc voltage is applied.

S type flush shield.
For access doors.
S type grey metallic trim fitted with an electrical mechanism to form a flush-fit lock release

Consumption:

• N, A 12Vac: 980mA
• N-412 12Vdc: 400mA
• N-512 12Vdc: 200mA

Specification:

• Weight: 0,2565 kg
• Size: 3.4x16.3x2.7 cm
