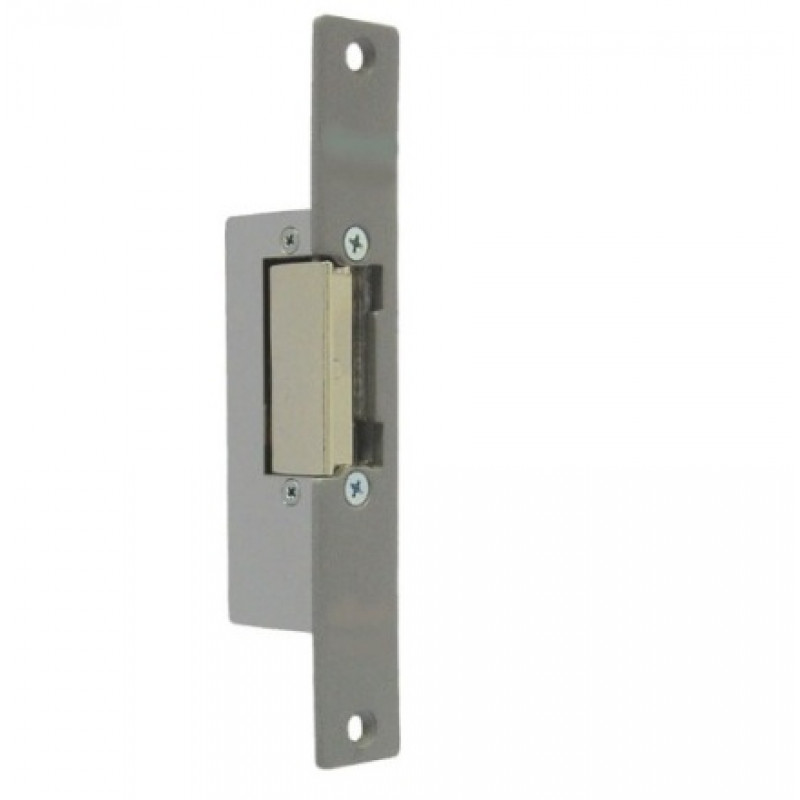

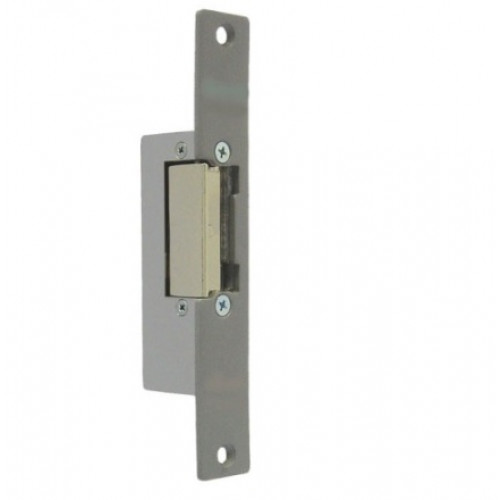

Flush mounted Door lock.
The electric lock release is a device installed in the door frame to control opening remotely using an electronic device. In an electric door entry system installation it is possible to activate the door lock of the building's entrance to allow the entry of the visit directly from the telephone or monitor just by pressing the doorlock key. The doorlock it made up of an electrical mechanisim and a shield if it is flush mounted.

Universal
This door lock release is made up of a UNIVERSAL electric mechanism which dimensions are:
104(V)x20(H)mm, if MAX version the size of the body changes to 91(V)mm. Flush mounted in wooden and metal frames. Characteristic robust design and low power consumption.

A-412 type Automatic 12Vdc. (Automatic operation and 12 Vdc activation)
The lock release is triggered automatically when it receives a 12Vdc pulse. The lock release is blocked again once the voltage is cut off and the door opens and closes again mechanically. For proper installation, the automatic lock pin must be pressed in 3mm by the latch once the door is closed again.

S type flush shield.
For access doors.
S type grey metallic trim fitted with an electrical mechanism to form a flush-fit lock release.

Consumption:

• N, A 12Vac: 980mA
• N-412 12Vdc: 200mA
• N-512 12Vdc: 150mA
• N-424 24Vdc: 120mA

Specification:

• Weight: 0,2795 kg
• Size : 3.4x16.3x2.7 cm

For more details, please refer with our attached datasheet.
