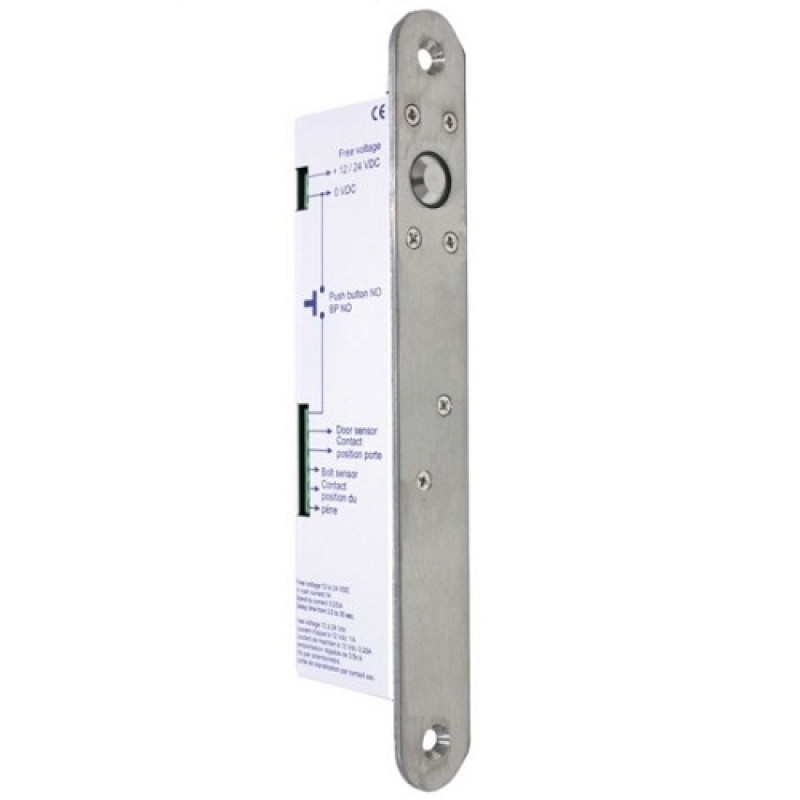

Fermax, 1786, Electric Bolt Mod.700N-512/524 (V7)

Fermax, 1786, Electric Bolt Mod.700N-512/524 (V7)

"Inverted function electric bolt designed for security installations, banks and access control. Installing this type of electric bolt is very simple thanks to its slim 22mm shield, making it ideal for all kinds of doors, with identical shield and faceplate dimensions to make it reversible. Admits both 12Vdc and 24Vdc power supply. With timing and monitoring functions.

While the door is closed it receives current and the bolt remains shut; when current is interrupted the bolt is hidden. When we close again, the magnet detects the closed position and triggers the piston sensor, activating the bolt and blocking the door again.

Inverted operation, 12Vdc. Requires stabilised power supply, such as ref. 4813 12Vdc 2A."

Operating type.
There are several types of door lock release mechanisms depending on the type of operation needed.

N-512 Inverted type 12Vdc (Inverted Operation and 12 Vdc activation)
The door release is automatically unlocked when the 12 Vdc pulse stops.

Technical Specifications:

• Initial consumption: 12Vdc: 1A / 24Vdc: 500mA.
• Consumption in use: 12Vdc: 250mA / 24Vdc: 140mA.
• Dimensions: 212(V)mmx22(H)mmx45(P)mm

Weight: 0,7970 kg
Size of product when packed: 5,5x28,2x9 cm
