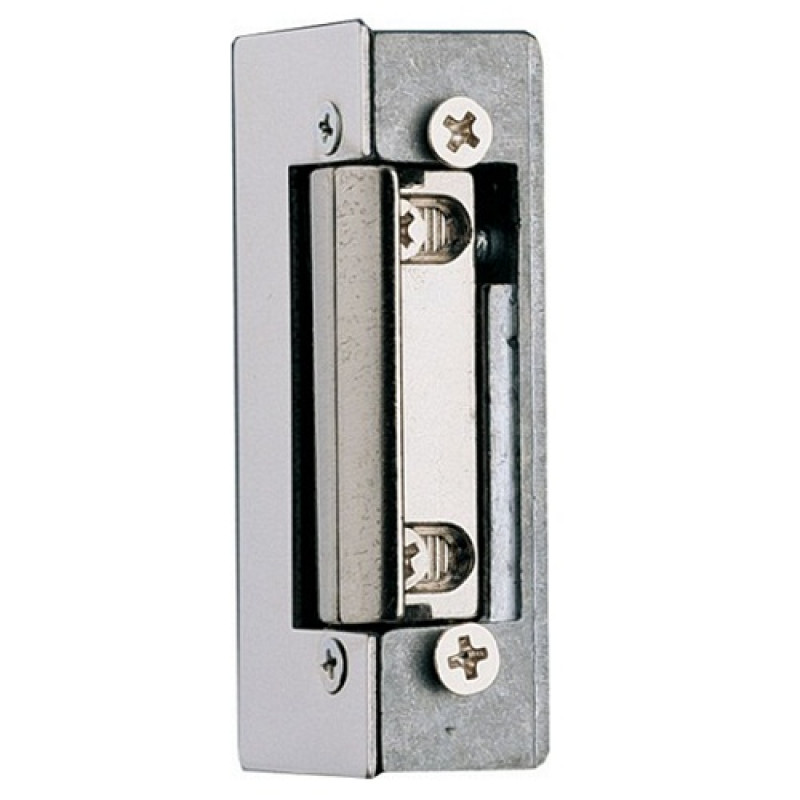

Fermax, 1777, Electric Strike Mod 540N Max

Fermax, 1777, Electric Strike Mod 540N Max

Reversible (Right DIN or Left DIN).
Lets you open the door from right and left.
Symmetrical.
Allows to change hands, maintaining the body symmetry.

DIN STANDARD
Establishes the direction the door opens and designates the type of lock release installed.
Looking at the door from the side with the hinges visible:

• If the hinges are to the left of the observer, it is a left DIN lock release.
• If the hinges are on the observer’s right, it is a right DIN.

Operating type.
There are several types of door lock release mechanisms depending on the type of operation needed.

N type Normal 12 Vac. (Normal operation and 12 Vac activation).
The lock release is unblocked for the time that the 12 Vac voltage is applied.

Max Adjustable Latch:
The lock release includes an adjustable latch, allowing a perfect fit between latch and deadbolt in the lock, with a 4mm margin. It avoids door leaf pressure on the lock release latch bolt.

Technical Specifications:

• Weight: 0,1650 kg
• Size of product when packed: 2,7x10,2x3,2 cm
