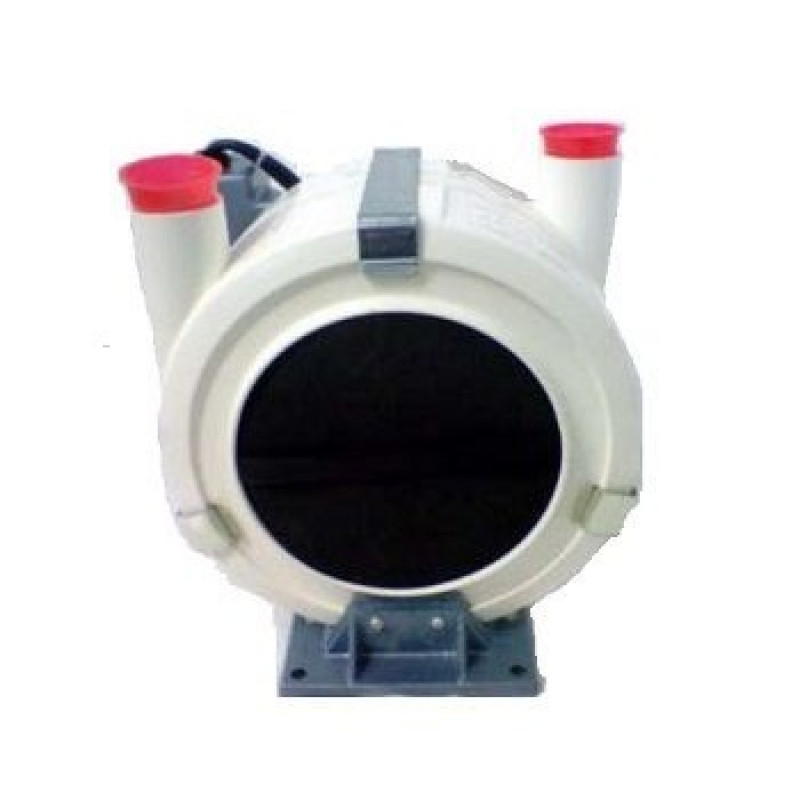

Patol, 710-041, Air Purge Unit 5040 (115vac)

Patol, 710-041, Air Purge Unit 5040 (115vac)

Where a suitable “on site” air supply is not readily available Patol 5000 Series air purge units may be employed.
These devices are single and multistage centrifugal blowers that can be provided in a variety of configurations that accommodate differing application requirements such as air delivery volume / pressure, supply voltage and mounting arrangements.

The units are provided with a 2m flexible supply cable for connection at an adjacent junction box. Some units are equipped with an easily removable and washable air filter, however these filters are intended to preserve blower life in normal conditions.

The blower should either be installed outside a dirty/dusty area or the unit inlet piped to a clean air environment. Intermediate rigid ducting is most readily achieved by the use of standard µPVC pipes and fittings. 2 m of hose is provided with each purge unit for couplings at sensor & blower.

Specifications:

• Supply :- 115 Vac 50/60 Hz.
• Delivery :- 5 l/s at 11 mBar - 10 l/s at 7.5 mBar

For more details, please refer with our attached datasheet.
