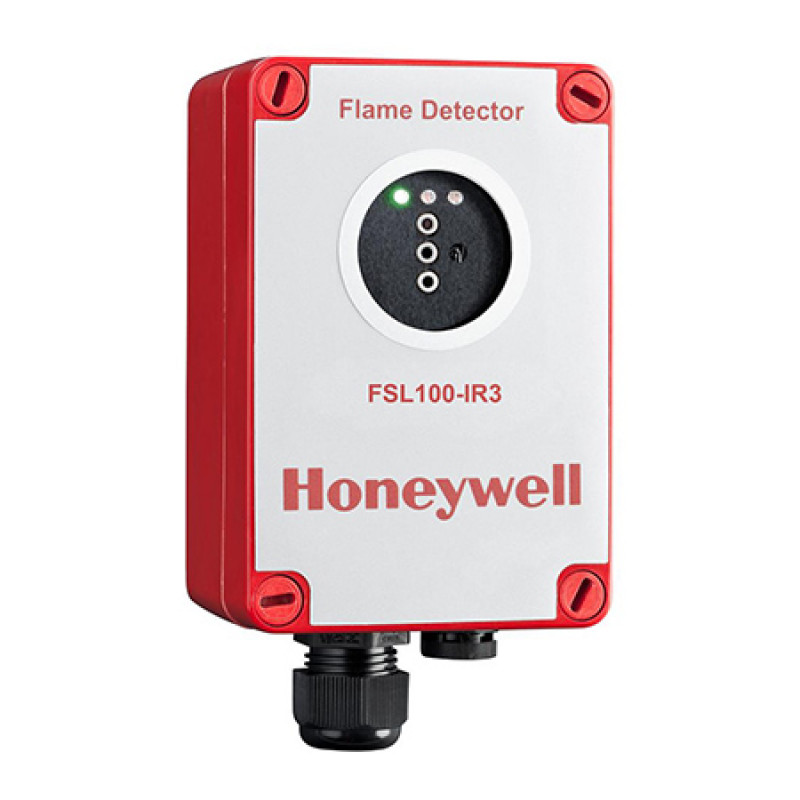

Honeywell (FSL100-IR3) IR3 35m Zone 2/22 Flame Detector - Red
- Brand:Honeywell
- Product Code:FSL100-IR3
- Availability:Please Call or Email Us to Check Availability
Honeywell (FSL100-IR3) IR3 35m Zone 2/22 Flame Detector - Red
The FSL100 Series of flame detectors from Honeywell delivers robust, fast, and reliable detection of flaming fires in a wide range of applications.
The range consists of UV, UV/IR and IR3 flame detectors. All utilize sophisticated sensing and signal analysis to detect fires quickly while also rejecting false alarms.
The FSL100 may be small and lightweight for easy installation but it is designed to work in tough indoor/outdoor environments, as well as potentially explosive atmospheres.
With a large field of view it can detect a range of different types of fire including hydrocarbon and non-hydrocarbon sources. Available in UV, UV/IR and 3IR we have your application covered.
Suitable for Many Applications
- UV, UV/IR and IR3 available
- Hydrocarbon and non-hydrocarbon sources
- Use in potentially explosive atmospheres
- Indoor and outdoor operation
- High visibility red
Great Performance
- Approved to EN54-10 and FM3260 flame detector standards
- Comprehensive automatic self test
- Remote manual self test option
Fast & Reliable
- High speed sensors and microprocessor
- Sophisticated analysis algorithms
- Continuous health monitoring
- False alarm rejection
Reduced Life Cost
- Long life elements
- Pressure compensation to avoid contamination
- Buy with confidence
Ease of Installation and Use
- Relay and mA outputs as standard
- Lightweight GRP housing
- Pre-formed knockouts
- Optional swivel mounting bracket
- Long range test lamp available
Key Features:
- Analysis of the flame flicker frequency for improved false alarm rejection
- Particularly suited to liquid hydrocarbon and dirty fires
- Affected less by window contamination or smoky fires
Good resistance against the influences of:
- Direct and reflected sunlight
- Artificial light, such as fluorescent tubes and glass covered halogen lamps
- Arcs and electric discharges (static or from e.g. electric motors)
- The radiation from electric welding provided that the electric welding takes place at a distance more than 10 feet from the flame detector (a welding rod contains organic compounds which may produce a small flame)
- Especially suitable fires that emit large amounts of smoke
