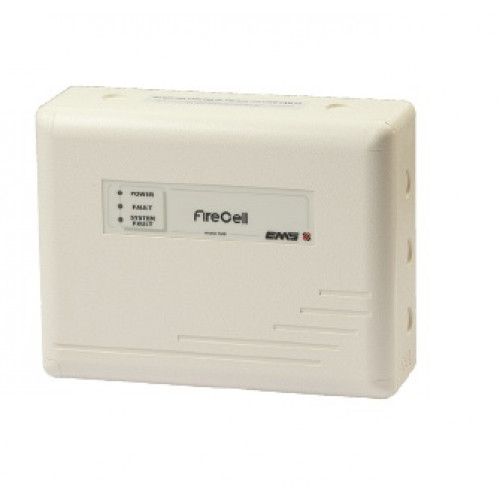

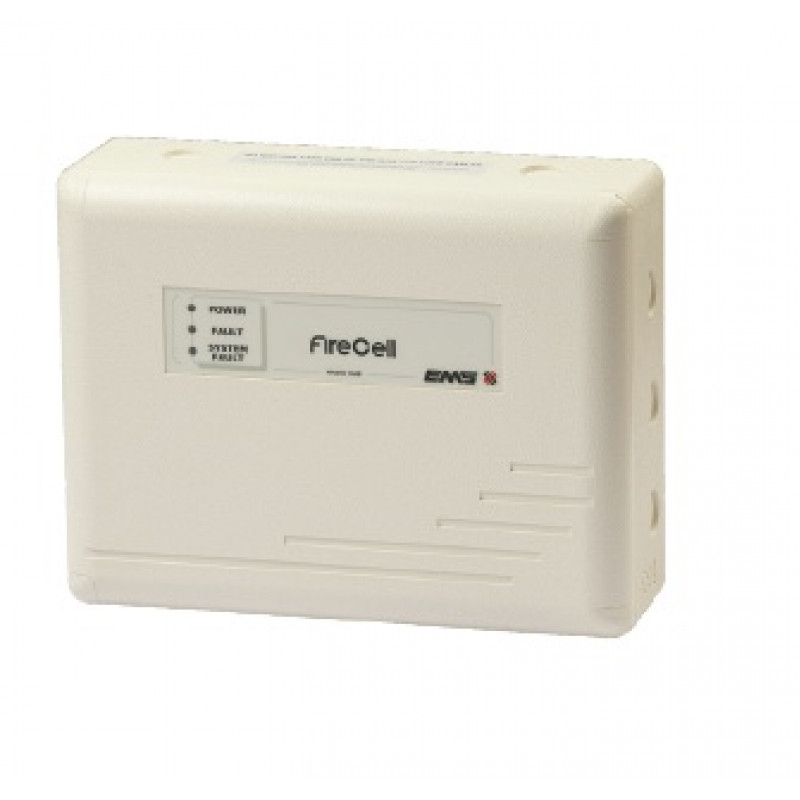

EMS FCX-500-002, FireCell Radio Hub (Two Loop) XP Interface
- Brand:EMS
- Product Code:FCX-500-002
- Availability:Please Call or Email Us to Check Availability
EMS FCX-500-002, FireCell Radio Hub (Two Loop) XP Interface
FireCell Radio Hub Features:
- Fully addressable
- Wireless activation
- Third party certified (EN54)
- 2-way radio communication
- Loop powered
- Diagnostics port
- Range in excess of 150 metres
Overview:
The FCX-500-002 (two loop) Radio Hub is communication module for up to 31 RCC’s. The hub provides information via the loop to the CIE using the XP95 protocol.
The system is expanded via the RCC network with each RCC capable of passing information to and from up to 31 detection or output devices.
The cluster network is designed to send and receive information via multiple hops to ensure that a single point of failure does not lose more than 32 devices.
Designed and manufactured using the latest techniques and surface-mount technology ensures component count is kept to a minimum, thereby maximising reliability.
One, two and four loop versions of the Radio Hub are available.
Specifications:
- Dimensions: 270mm x 205mm x 75mm.
- Operating Temperature: -10°C to 70°C
- Humidity: Up to 95% non-condensing
- Supply: Loop powered 24v with a maximum current draw of 50mA
- IP Rating: IP54
- Operating Frequencies: 868 MHz
- Output Transmitter Power: 14dBm
- Standards: Third party certified to: EN54 part 18 / EN54 part 25 / ETSI EN 300 220
