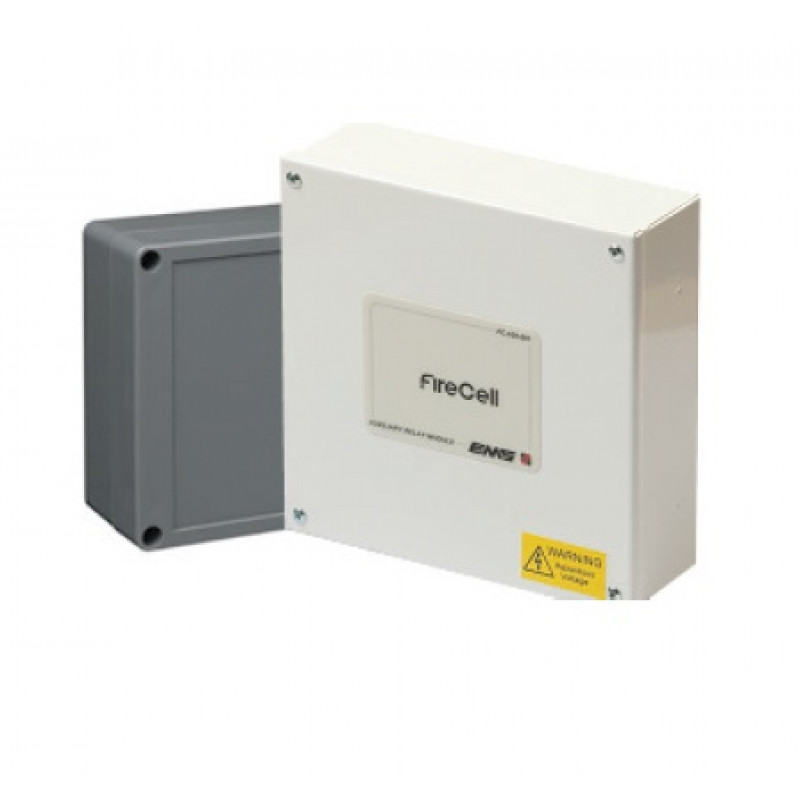

EMS FC-630-001, FireCell Auxillary Relay Module Kit

EMS FC-630-001, FireCell Auxillary Relay Module Kit includes 1 x FC-610-001 and 1 x FC-620-001

• Fully addressable
• Wireless activation
• Third party certified (EN54)
• 2-way radio communication
• IP65 casing
• 5 year battery life at normal conditions
• Dual input/Dual output
• Universal transmitter module
• Transmitter tamper
• Range in excess of 150 metres

Overview:

FireCell Auxillary Relay Module Kit Includes 2x 230v a.c. 2A switching relays. Includes FC-610-001 and FC-620-001. The Model FC-610-001 has dual inputs and outputs that can be individually operated whilst using only one address on the system. FireCell Auxillary Relay Module Includes 2x 230v a.c. 2A switching relays

The device is housed in an industry standard impact resistant ABS moulding. The device employs 2-way radio communication with the fire system controller using 868MHz wavebands to receive command instructions for auto reporting.

Designed  and  manufactured  using  the  latest  techniques  and  surface-mount technology ensures component count is kept to a minimum, thereby maximising reliability.

The I/O unit is powered by a low-voltage dual supply alkaline battery pack. The battery pack condition is continually monitored. The battery board has been tested to provide a 5 year battery life at normal conditions (15°C-35°C). The system  indicates  remaining  battery  capacity  and  a  low  battery  condition  is indicated to the controller as a fault, leaving approximately 30 days for the battery pack to be changed.

Technical Specifications:

• Dimensions: 240mm x 120mm x 50mm, Weight 0.60Kg
• Operating Temperature: -10°C  to +55°C
• Humidity: Up to 95% non-condensing
• Supply: 6 x AA cell   Alkaline batteries
• IP Rating: IP65
• Output Rating: 2A @24V DC.
• Operating Frequencies: 868 MHz
• Output Transmitter Power: Variable 0-14dBm
• Standards: Third party certified to: EN54 part 18, EN54 part 25, ETSI EN 300 220
• Includes 2x 230v a.c. 2A switching relays.
